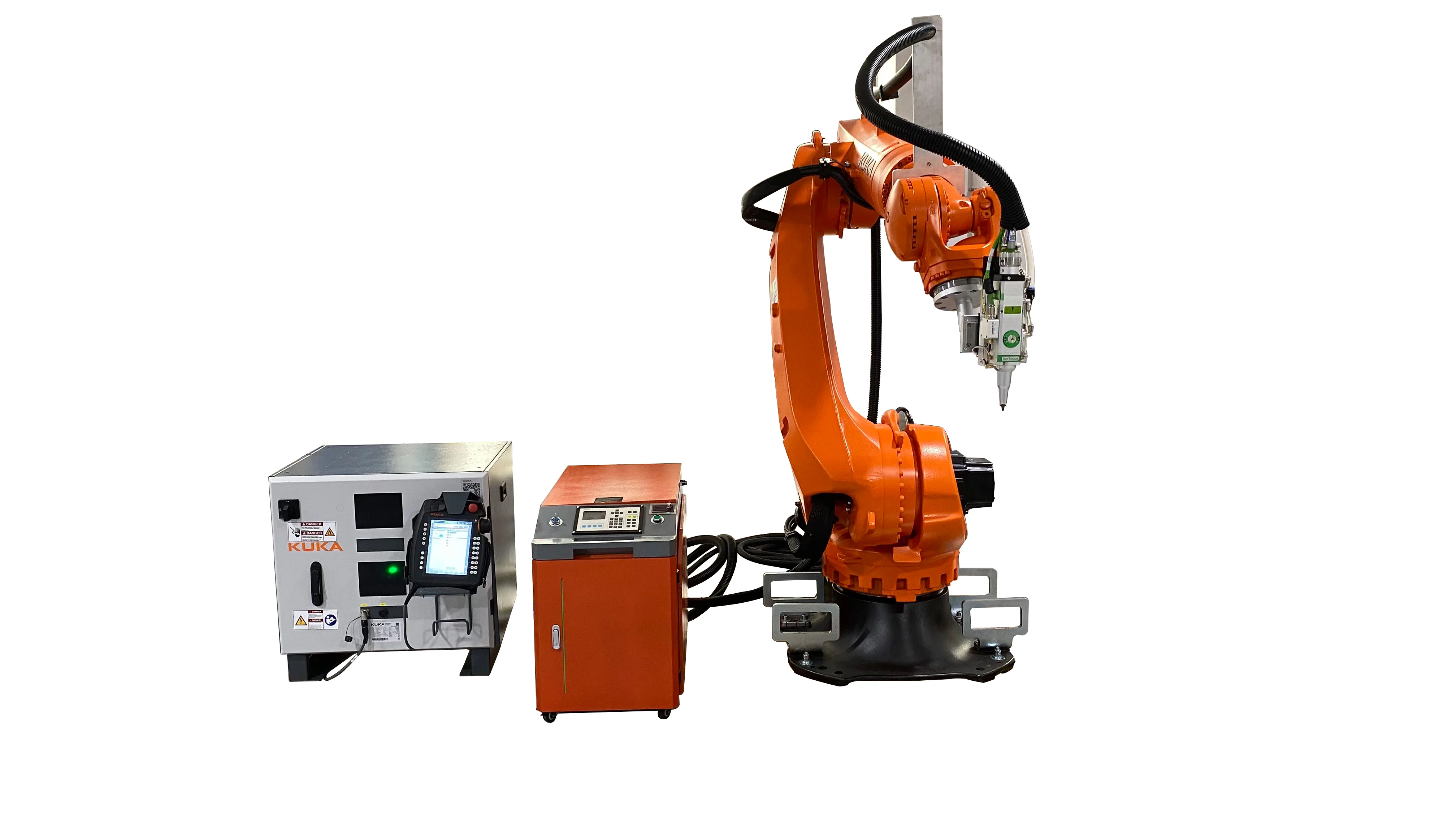

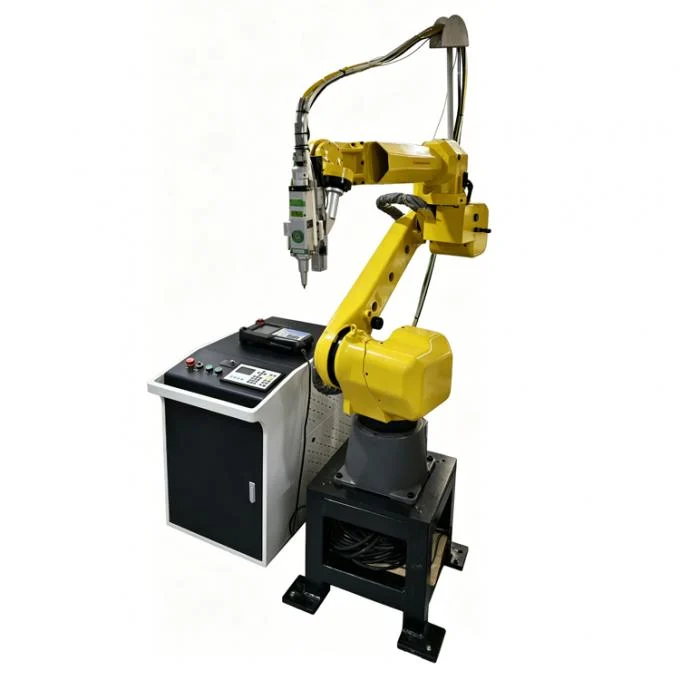

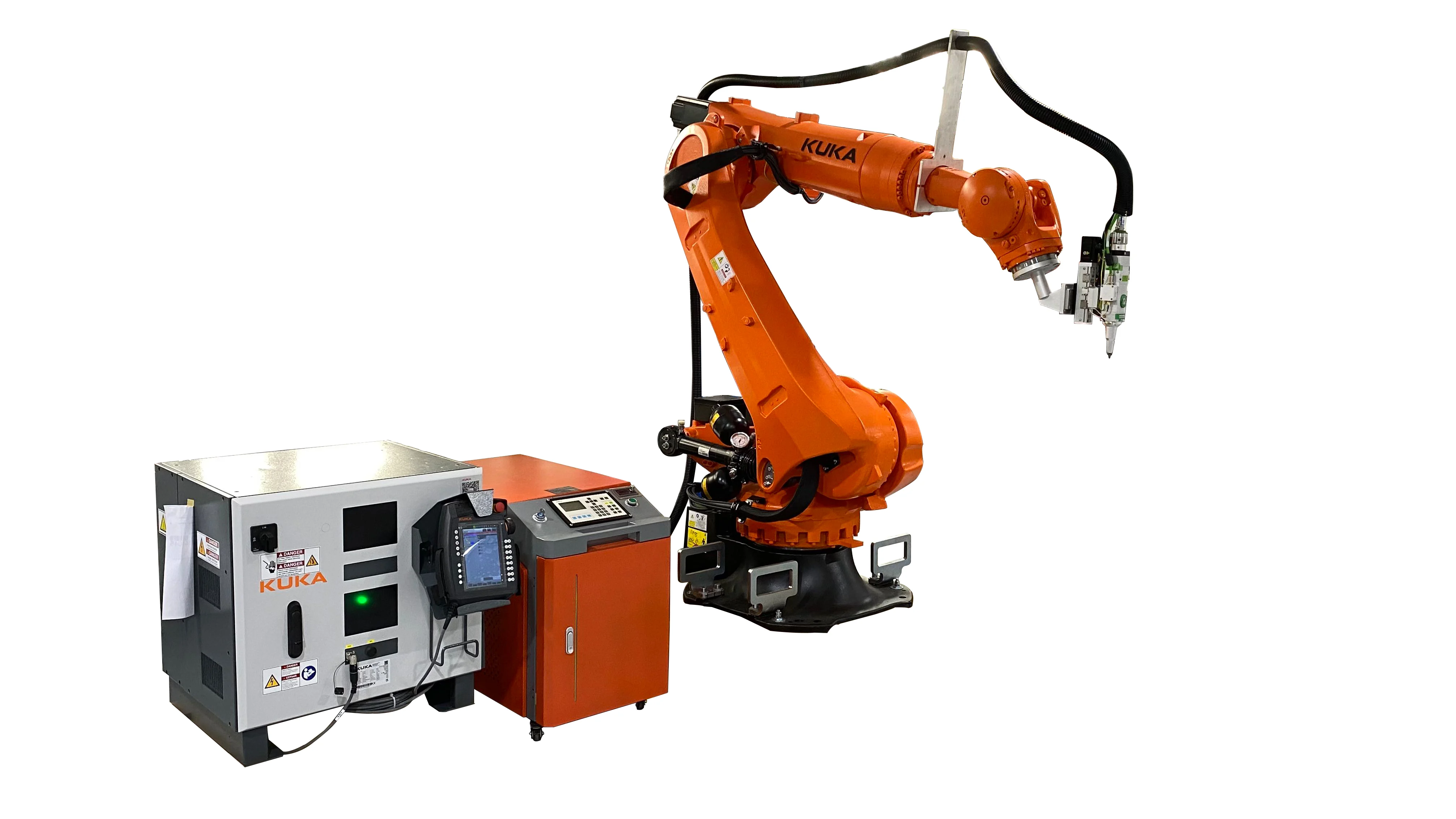

TY-QG5018 Robot Laser Cutting Machine

Six-axis fiber laser cutting for formed and irregular metal components. Program holes, trimmed edges and three-dimensional contours around the workpiece, with robot reach, tooling and laser power selected for each application.

Robot axes6axes

Laser options1.5–6kW

Programming2methods

Request a quote ← All robot systems

The quotation defines the robot, process equipment, fixtures, safeguarding, installation and acceptance scope for your application.

Specifications

TY-QG5018 configuration

Machine configuration

Laser power options: 1,500 / 3,000 / 6,000 W
Robot structure: Six-axis industrial robot
Robot reach: Selected around the part and fixture
Programming: Teach programming / offline programming
Cooling: Water cooling
Power supply: 380 V / 50 Hz

Robot Laser Cutting Machine configuration options
Machine configuration
Laser power options	1,500 / 3,000 / 6,000 W
Robot structure	Six-axis industrial robot
Robot reach	Selected around the part and fixture
Programming	Teach programming / offline programming
Cooling	Water cooling
Power supply	380 V / 50 Hz

Features

Configure the system around your production task

Three-dimensional contour cutting

Reach formed surfaces, openings and edge-trimming paths using a six-axis robot.

Fixture-led setup

Locate the workpiece consistently and review access to every programmed surface.

Flexible program changes

Use teaching or offline programming when changing part geometry.

Laser configuration

Select laser power, cutting head and assist-gas settings against the material and required edge quality.

Project configuration

From workpiece review to cell integration

01
Workpiece and production review
02
Robot and process selection
03
Fixture and layout planning
04
Programming and interface setup
05
Safeguarding and access review
06
Process trials and acceptance

01
Workpiece and production review
02
Robot and process selection
03
Fixture and layout planning
04
Programming and interface setup
05
Safeguarding and access review
06
Process trials and acceptance

Application scope

Parts and production applications

Review material, geometry, access and production requirements with the proposed configuration.

Automotive componentsHoles and trimmed edges in formed panels and covers

Fitness equipmentTubular frames and shaped metal components

Hardware and aluminium framesContour and opening preparation for fabricated assemblies

Compare related robot configurations

Robot Laser Welding Machine

TY-HS5018

Combine a six-axis industrial robot with a fiber laser welding system for repeatable three-dimensional joints. Configure the welding head, fixtures, wire feed and workpiece access around the material and seam.

Robot Handling System

H-AGV

A fixed-base or rail-mounted industrial robot handling system for transferring parts and loads between defined stations. Select the gripper, robot reach, rail arrangement and connected equipment around the load and workflow.

Robot Laser Cutting Machine with Positioner

TY-QG5020

Pair a six-axis laser-cutting robot with a rotary workpiece positioner for multi-sided metal parts. Coordinated reorientation brings additional surfaces into reach and supports cutting, trimming and hole-making around formed components.

Explore the applications and laser processes connected to this equipment.

Stainless-steel sinks, kettles and fabricated kitchen components

Kitchen & sanitary ware

Cutting, welding and marking for sinks, showerheads, tee pipes and kettles.

View solution

Vehicle body structure, battery tray and automotive metal components

Automotive components

Laser processing for body structures, powertrain parts and battery components.

View solution

View all industry solutions

Define the complete workstation before selecting the robot

Workpiece and tooling

Provide drawings, material, dimensions, mass and the required operations. Include fixture access and the intended loading method so the robot and tooling can be selected together.

Integration and acceptance

Specify production targets, connected equipment and available floor space. Agree the process trial, guarding, interfaces and acceptance criteria for the complete cell.

Machine selection questions

How is the TY-QG5018 configured?

What information is needed for a quotation?

Send representative part drawings, material and dimensions, required operations, target output and available layout. Include connected equipment and any requested fixture or positioner.

How are guarding and operator access defined?

The complete application determines protective measures. The process, tool, workpiece, fixtures and operator access are considered together when defining guarding and interlocks.

Request a quote

Tell us the part. We will tell you the machine.

Price and delivery depend on the robot, process package, workholding, safeguarding and integration scope.
