Sheet handling envelope
- Materials
- Carbon steel / stainless steel
- Minimum sheet
- 1,200 × 1,000 mm / 47.2 × 39.4 in
- Maximum sheet
- Up to 4,000 × 2,000 mm / 157.5 × 78.7 in
- Maximum weight
- 500 kg / 1,102 lb
Automatic sheet handling
Automatic Loading & Unloading System
This automatic loading and unloading system supplies full sheets to a laser cutter and removes the completed cut sheet in a synchronized workflow. Select LGS 3015 or LGS 4020 around sheet dimensions, weight, machine interfaces and the unloading arrangement.
Max sheet weight500kg
Listed formats2models
Max sheet length4,000mm
Whole-machine warranty: 2 years · Final price and delivery timing depend on sheet data, laser-cutter interface, loading and unloading logic, layout, guarding, utilities, installation and acceptance requirements.
Specifications
SM-series-02 model comparison
Compare all listed models and their working areas in one complete table. Rows spanning the model columns are series-wide specifications.
LGS 3015
- Maximum sheet size
- 3,000 × 1,500 mm / 118.1 × 59.1 in
- Minimum sheet size
- 1,200 × 1,000 mm / 47.2 × 39.4 in
- Maximum sheet weight
- 500 kg / 1,102 lb
- Listed sheet materials
- Carbon steel / stainless steel
- Control
- Intelligent scheduling system
- Safety
- Multiple sensors + safety interlock system
- Synchronization
- Synchronized with laser cutting machine
- Power supply
- 380 V / 50 Hz
- Whole-machine warranty
- 2 years
LGS 4020
- Maximum sheet size
- 4,000 × 2,000 mm / 157.5 × 78.7 in
- Minimum sheet size
- 1,200 × 1,000 mm / 47.2 × 39.4 in
- Maximum sheet weight
- 500 kg / 1,102 lb
- Listed sheet materials
- Carbon steel / stainless steel
- Control
- Intelligent scheduling system
- Safety
- Multiple sensors + safety interlock system
- Synchronization
- Synchronized with laser cutting machine
- Power supply
- 380 V / 50 Hz
- Whole-machine warranty
- 2 years
Coordinate sheet handling with laser cutting
01
Synchronized loading and unloading
The system is configured to load full sheets for cutting and unload the completed sheet in coordination with the connected laser cutting machine.
02
LGS 3015 and LGS 4020 formats
Choose between listed maximum sheet sizes of 3,000 × 1,500 mm and 4,000 × 2,000 mm after reviewing the cutting machine and production mix.
03
Up to 500 kg sheet handling
The source configuration lists a maximum feeding-sheet weight of 500 kg for carbon-steel and stainless-steel production.
04
Intelligent scheduling control
The listed control coordinates sheet-handling work with the production sequence and the connected cutting equipment.
05
Sensors and safety interlocks
Multiple sensors and a safety interlock system are included in the listed configuration for equipment-state monitoring and coordinated operation.
06
Modular project layout
Loading position, unloading area, laser-cutter interface, guarding and utilities are confirmed together for the available floor plan.
From sheet data to acceptance scope
- 01
Sheet grade, size, thickness and weight review
- 02
Target laser cutter and production-mix confirmation
- 03
LGS 3015 or LGS 4020 format selection
- 04
Sheet pickup and separation review
- 05
Laser-cutter synchronization planning
- 06
Cut-sheet unloading and stacking logic
- 07
Safety, utilities and floor-layout planning
- 08
Acceptance, installation and operator-training scope
System scope
Confirm the handling envelope and machine interface together
The listed data defines the starting configuration. Pickup tooling, sheet separation, unloading logic, guarding and interfaces are finalized against the submitted production layout.
Control and integration
- Scheduling
- Intelligent scheduling system
- Machine link
- Laser-cutter synchronization
- Safeguarding
- Multiple sensors + safety interlocks
- Power supply
- 380 V / 50 Hz
Compare connected sheet-production paths
Connected production
Smart factory systems
Compare coil-fed cutting, automatic sheet handling and sheet-storage systems.
Coil-fed laser blankingSM-series-01
Review the integrated uncoiling, leveling, feeding and laser-cutting production line.
Exchange-table sheet cuttingTY-JB series
Compare enclosed exchange-table fiber laser cutters for sheet and plate production.
Explore industry solutions
Browse our industry solutions and discuss the equipment, fixtures and process requirements for your application.
View all industry solutionsDefine the handoff at each side of the laser cutter
Check the full range of sheet sizes
LGS 3015 lists up to 3,000 × 1,500 mm and LGS 4020 up to 4,000 × 2,000 mm. Both list a minimum sheet size of 1,200 × 1,000 mm and maximum sheet weight of 500 kg. Review the full production mix against all three limits.
Confirm compatibility with the connected machine
Provide the laser-cutter model, table layout and available control interfaces. Scheduling, machine synchronization, sensors and interlocks need a coordinated review; the system is not presented as a universal plug-in retrofit for every cutter.
Separate sheet unloading from part sorting
The documented operation unloads the completed sheet after cutting. Define stacking and the next step for separating parts from the remaining material. Individual-part sorting and a storage tower require an explicitly agreed equipment scope.
Machine selection questions
Does unloading include individual-part sorting?
The described system unloads the completed cut sheet. Individual-part sorting is a separate function and is not established by the full-sheet unloading description.
Can this system be added to our existing laser cutter?
A retrofit requires review of the cutter model, table arrangement, control interfaces and synchronization requirements. Submit those details before assuming compatibility.
How should I choose LGS 3015 or LGS 4020?
Compare the maximum sheet format required by the production mix and the connected cutter: 3,000 × 1,500 mm or 4,000 × 2,000 mm. Also check the shared minimum size and 500 kg maximum sheet weight.
Is the storage tower shown in the image included?

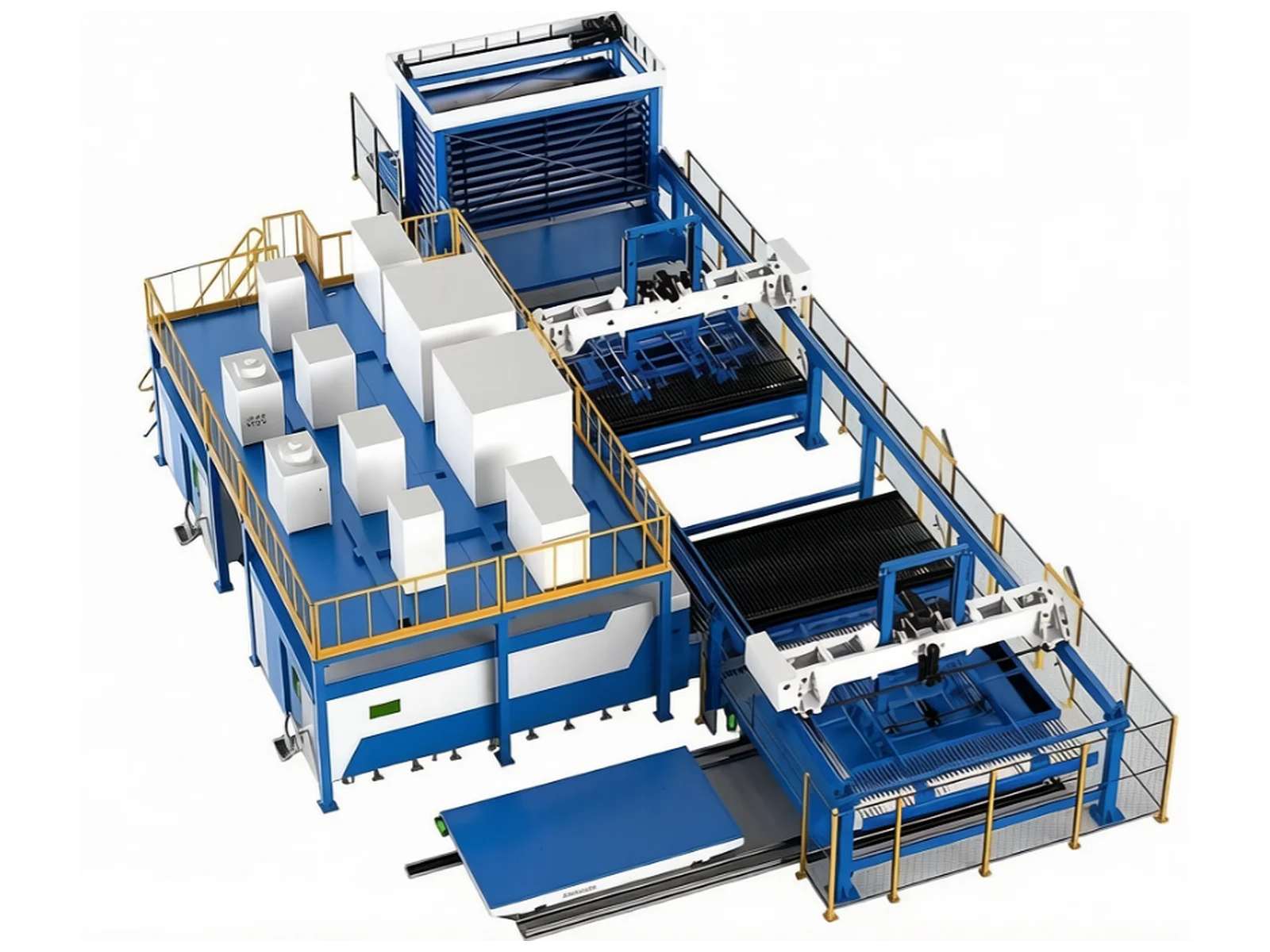

The image shows a system configuration, not a fixed supply list. Confirm whether storage is required and identify the tower, interfaces and handling equipment separately in the quotation.
What should I send for a loading and unloading proposal?
Provide sheet grades, size and weight ranges, the laser-cutter details, floor plan and production sequence. Describe where raw sheets are picked up and how completed sheets should be unloaded and stacked.
Request a quote
Tell us the part. We will tell you the machine.
Price depends on LGS 3015 or LGS 4020 format, sheet grade and weight, laser-cutter interface, loading and unloading sequence, stacking method, guarding, controls, utilities, installation and acceptance requirements.
