Automatic loading tube cutting
TY-S120-G Fully Automatic Laser Tube Cutting Machine
The TY-S120-G is a 6 m fiber laser tube-cutting platform with a listed 10–120 mm round-tube range. Configure optional automatic bundle loading and optional unloading and sorting around repeat production, alongside the pneumatic auto-centering chuck and selected laser package.
Whole-machine warranty: 2 years · Final price and delivery timing depend on the selected laser, loading, unloading and process package.
Specifications
TY-S120-G technical data
Model and working range
- Model
- TY-S120-G
- Listed laser power
- 1,500 / 2,000 / 3,000 / 6,000 W
- Tube length
- 6,000 mm
- Round-tube diameter
- 10-120 mm
- Minimum listed tail length
- ≥80 mm
- Maximum single-pipe weight
- 300 kg
Motion and accuracy
- Maximum positioning speed
- 80 m/min
- Maximum acceleration
- 0.8 G
- Positioning accuracy
- ±0.02 mm
- Repeat positioning accuracy
- ±0.03 mm
Chuck and automation
- Chuck
- Pneumatic auto-centering chuck
- Loading
- Fully automatic bundle loading (optional)
- Unloading
- Automatic unloading and sorting (optional)
- Control system
- CypCut
Laser, utilities and warranty
- Laser source options
- Raycus / IPG / MAX
- Power supply
- 380 V / 50-60 Hz
- Whole-machine warranty
- 2 years
Loading and cutting system
Configure the material flow around repeat tube production

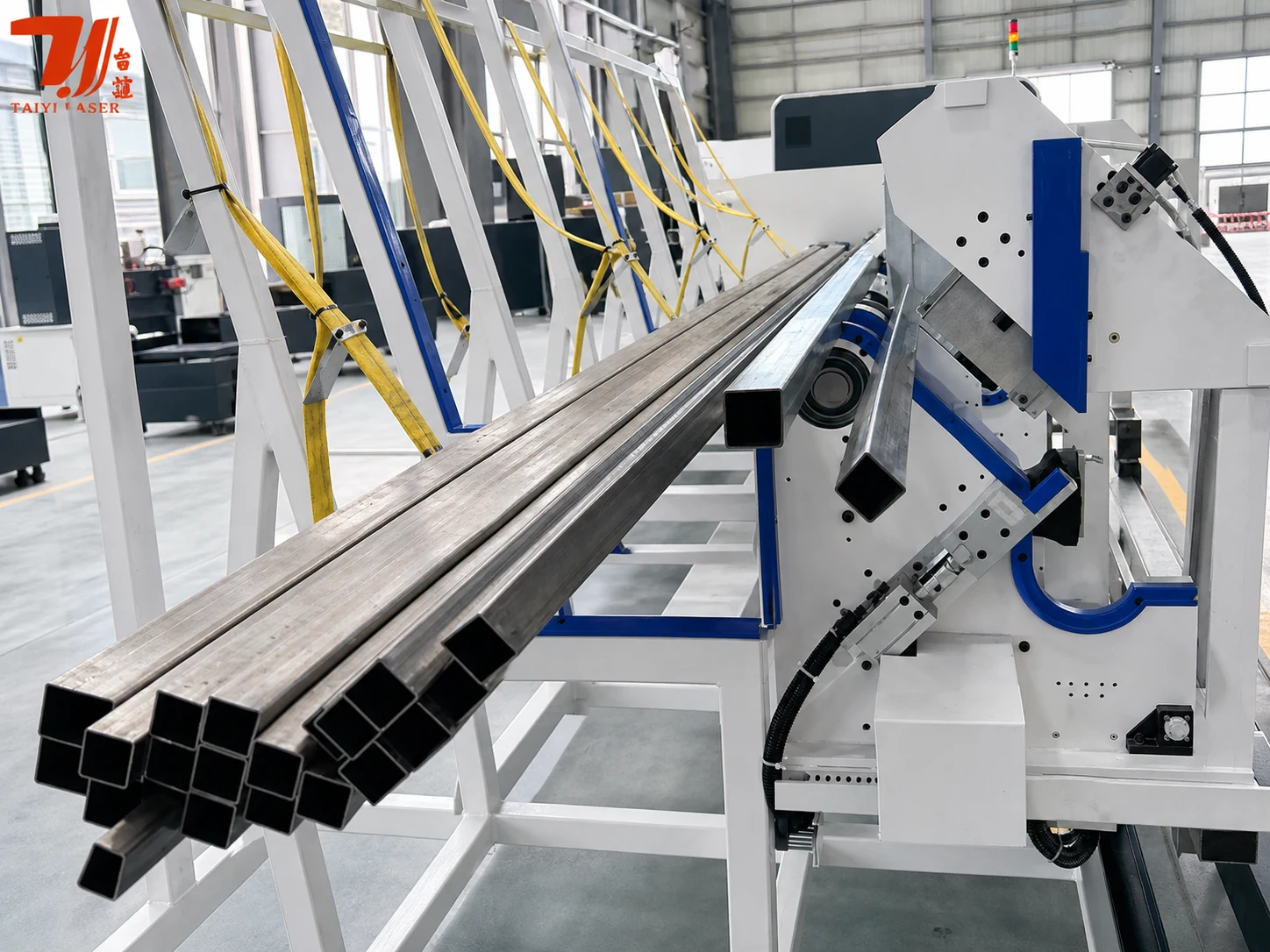

Optional automatic bundle loading
The listed loading package separates and feeds tube stock from the bundle-loading rack into the cutting path.

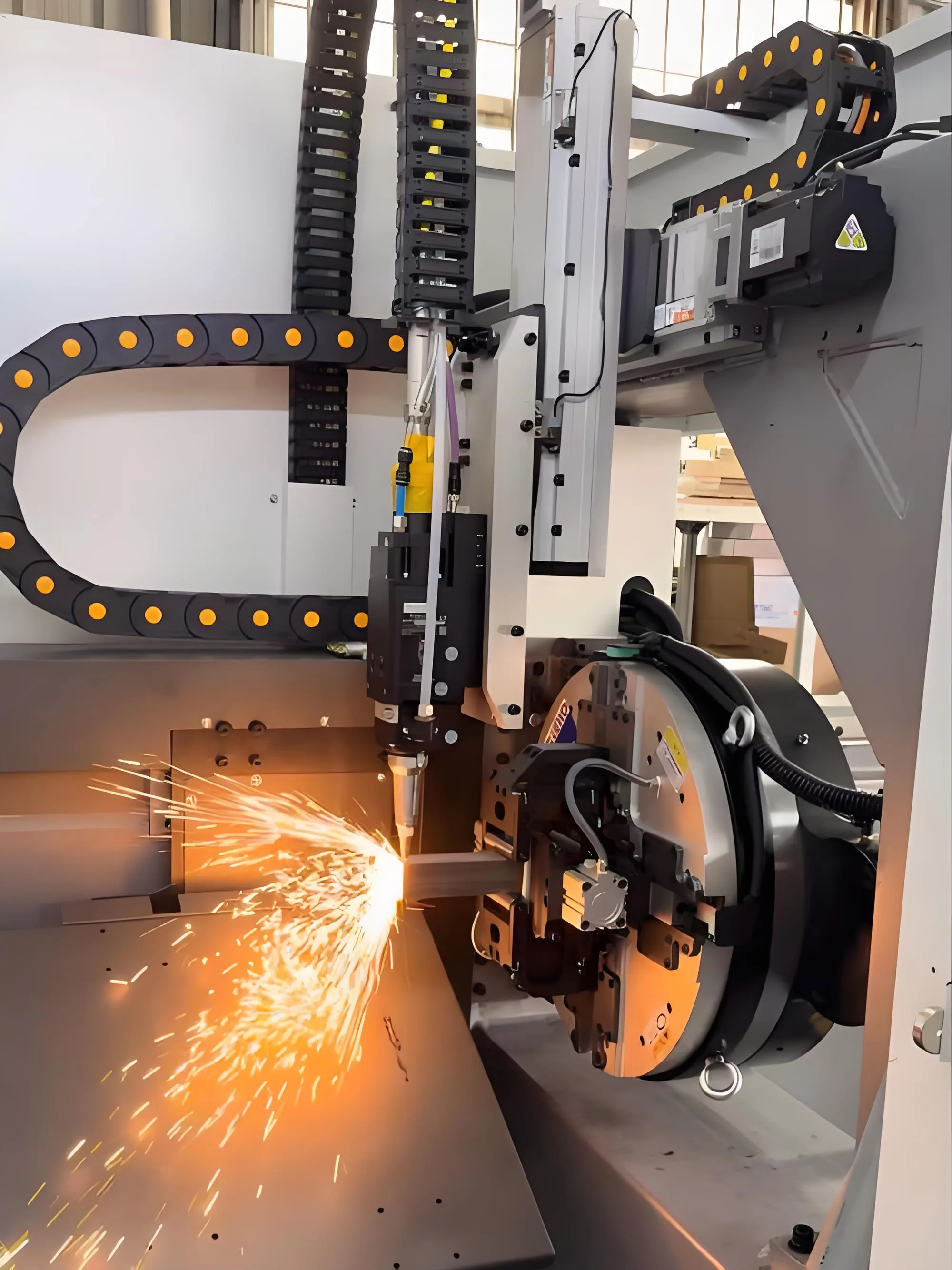

Pneumatic auto-centering chuck
The pneumatic chuck centers and clamps the workpiece for coordinated tube rotation and cutting motion.
Optional unloading and sorting
Automatic unloading and sorting are available as an optional downstream configuration.
Six-metre tube processing
The listed 6,000 mm tube length supports standard long-stock processing within the configured loading and support layout.
1.5-6 kW power selection
Four listed laser-power options let the process package be selected against material, wall thickness and edge-quality requirements.
CypCut tube-cutting control
The listed CypCut control coordinates cutting motion with the chuck and the selected loading or unloading package.
Production and inspection
From machine-bed preparation to delivery
- 01
Machine-bed welding
- 02
Beam preparation
- 03
Heat treatment
- 04
Precision machining
- 05
Pre-assembly inspection
- 06
Machine assembly
- 07
Testing, debugging and acceptance
- 08
Delivery
Automatic material flow
Bundle loading, chuck transfer and tube cutting in one line
The automatic loading and unloading packages are optional. The images illustrate configuration choices; the final rack, supports and discharge layout are confirmed against the tube bundle and workshop plan.
Processing scope
Tube materials and production contexts listed for TY-S120-G
Published wall-thickness limits are held back until the material, laser-power and gas combinations are confirmed at product level.
- Carbon steel
- Final capability is confirmed against grade, wall thickness, gas and edge-quality target
- Stainless steel
- Tube grade, wall thickness and surface requirements are reviewed before configuration
- Aluminium alloy
- Alloy grade and reflectivity are included in the process review
Related products
Other tube-cutting paths
TY-28025 three-chuck tube cutter
Three-chuck workholding for long, large-diameter tube and listed structural profiles.
Operator-assisted loadingSemi-automatic tube cutters
Compare TY-G120-F, TY-S90L, TY-S120-L and TY-6024 configurations for operator-assisted tube production.
All tube-cutting familiesLaser tube cutting machines
Compare semi-automatic, fully automatic, three-chuck and economical tube systems.
Explore industry solutions
Browse our industry solutions and discuss the equipment, fixtures and process requirements for your application.
View all industry solutionsSpecify each stage of the automatic handling package
Define what enters and leaves the machine
Provide the stock format, bundle arrangement, tube dimensions and how finished pieces should be collected. Automatic loading, unloading and sorting are separately identified options. The quotation needs to show which stages are included and the operator tasks that remain.
Check geometry and length before estimating output
The listed 6,000 mm tube length and 10–120 mm round-tube range help identify candidate jobs. They do not establish the same capacity for every profile or a guaranteed daily output. Include wall thickness, finished-part lengths and cut features in the review.
Machine selection questions
Does the fully automatic model name mean every handling option is standard?
No. The current specification lists automatic bundle loading and automatic unloading and sorting as options. Confirm each item in the equipment list and quotation rather than assuming it is included from the model name.
What tube size and length are listed for TY-S120-G?
The page lists a 10–120 mm round-tube diameter range and 6,000 mm tube length. Review other profiles, stock condition and support requirements against the actual cross-section and part drawing.
Does the demonstration video define the supplied equipment package?

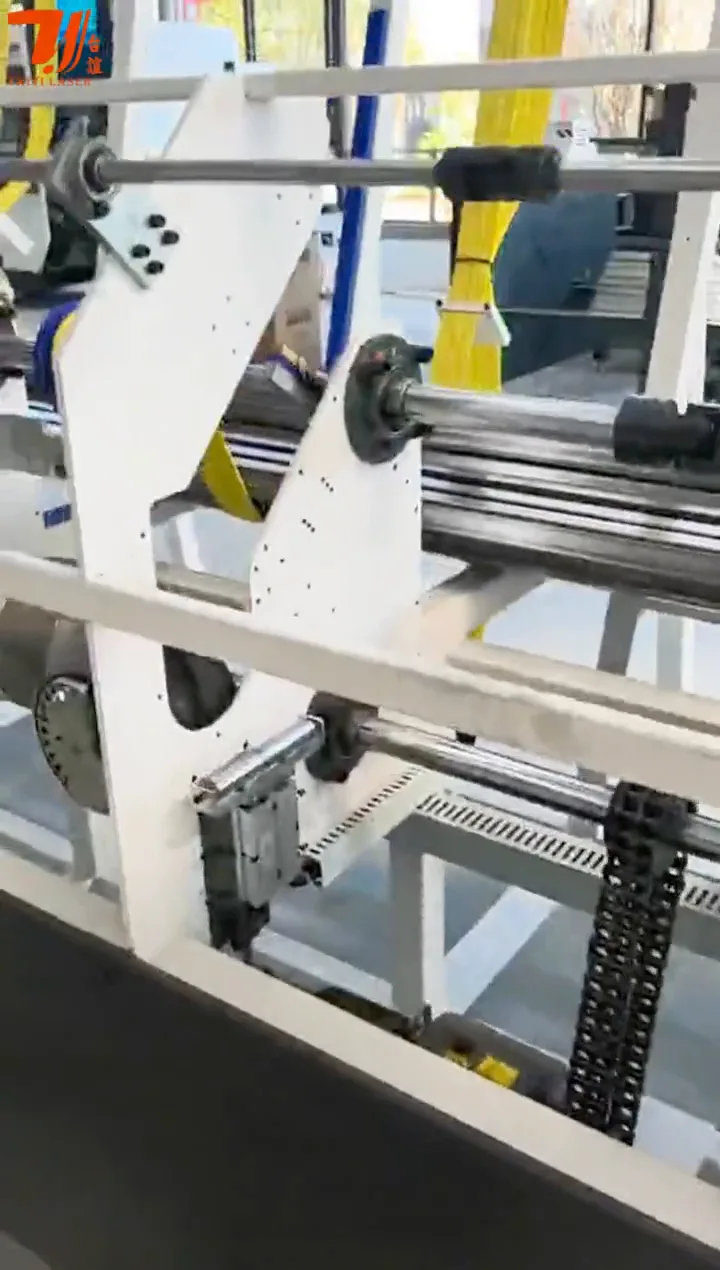

The video shows a loading and cutting configuration. The offered package is defined by the quotation and order specification. Identify the loading, unloading and sorting stages required for your project before confirming equipment.
Does automatic loading guarantee unattended production?
The optional loading package does not by itself establish an unattended production line. Stock replenishment, part collection, inspection and other operator tasks need to be defined for the complete workflow.
What determines a TY-S120-G quotation?
The selected laser, tube material and dimensions, bundle-loading arrangement, unloading and sorting requirements, and installation scope define the package. Supply representative drawings and the intended material flow so those items can be quoted clearly.
