TY-HS5019-1 Handheld and Cobot Laser Welding Machine

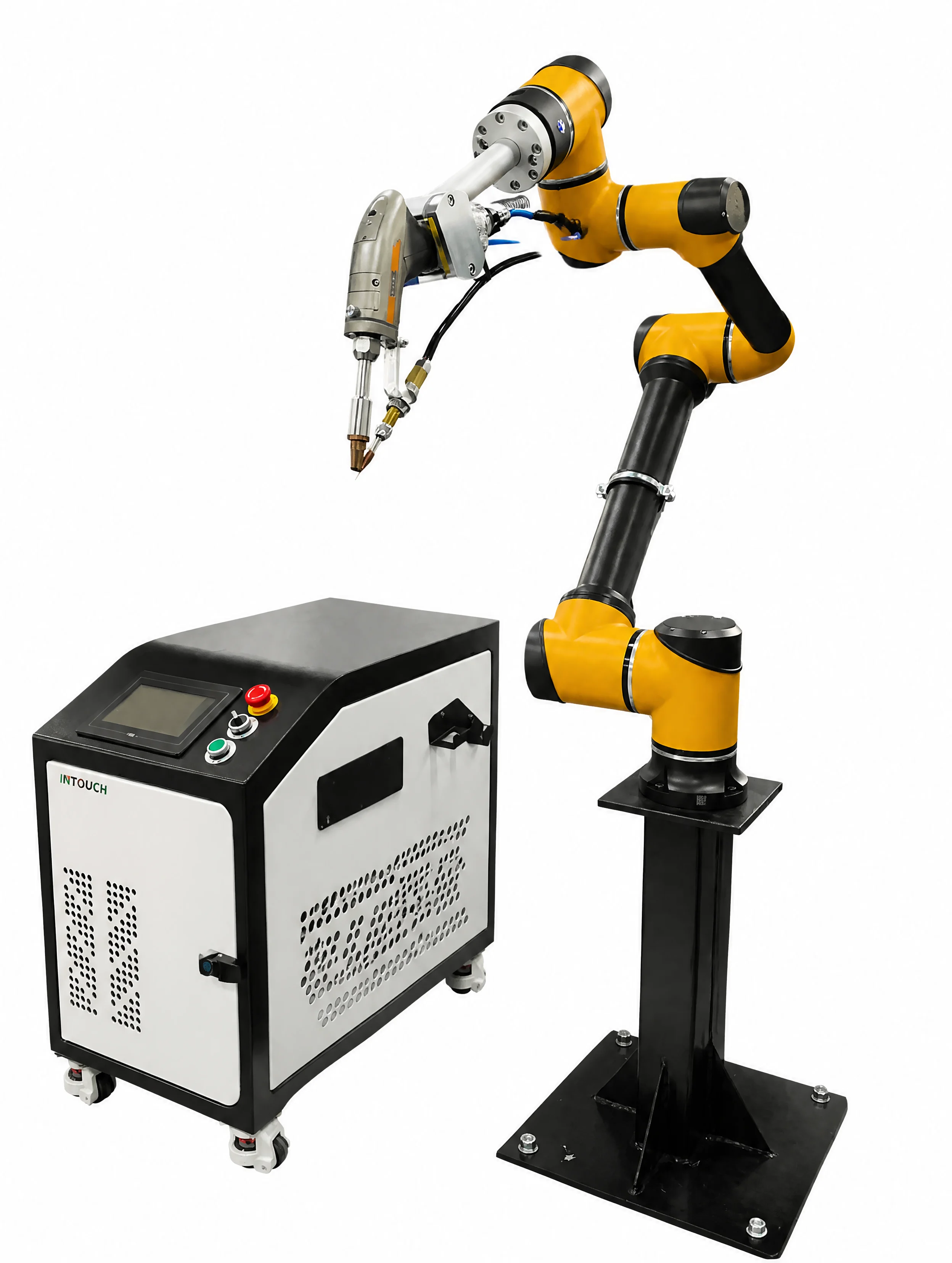

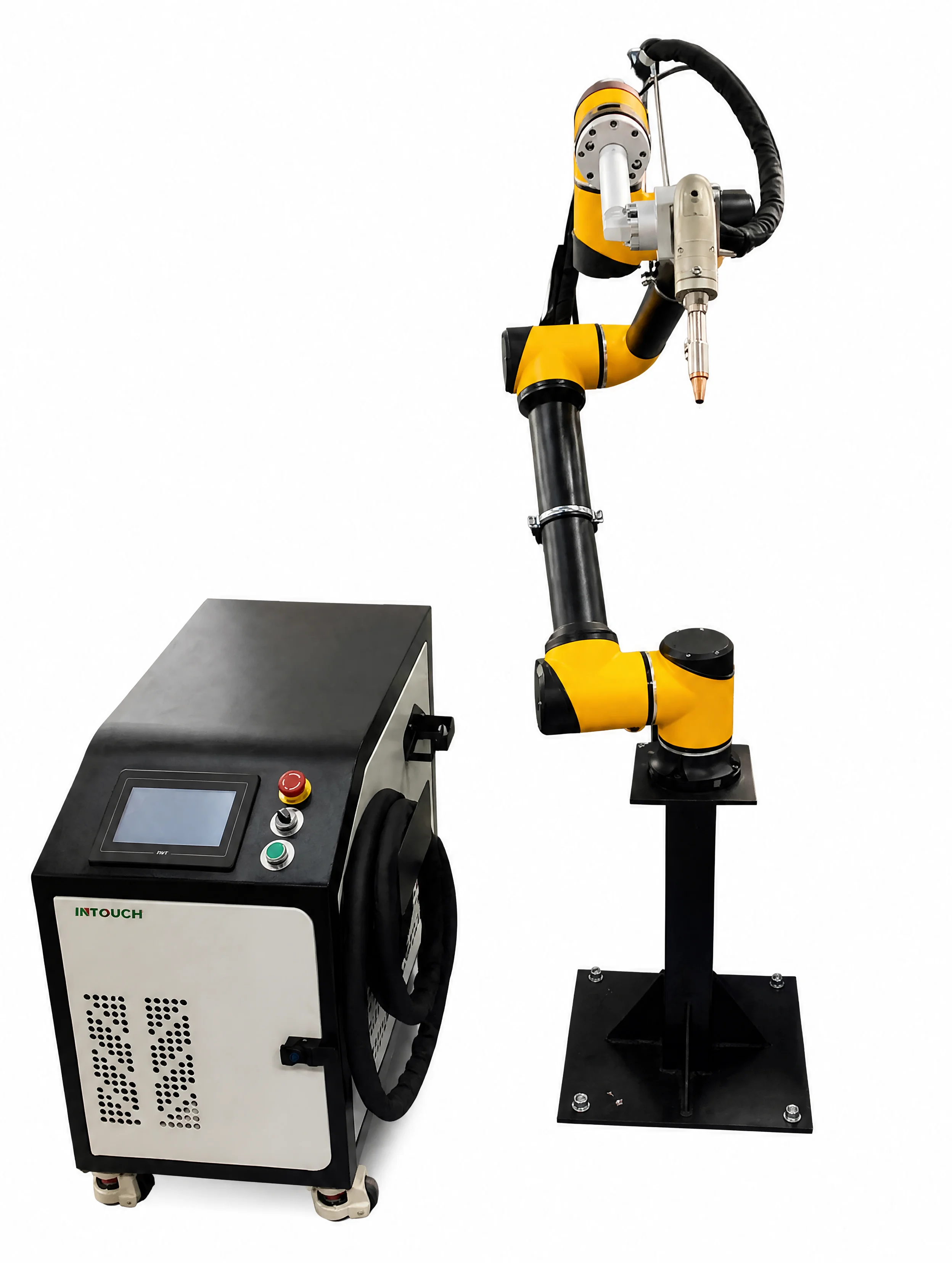

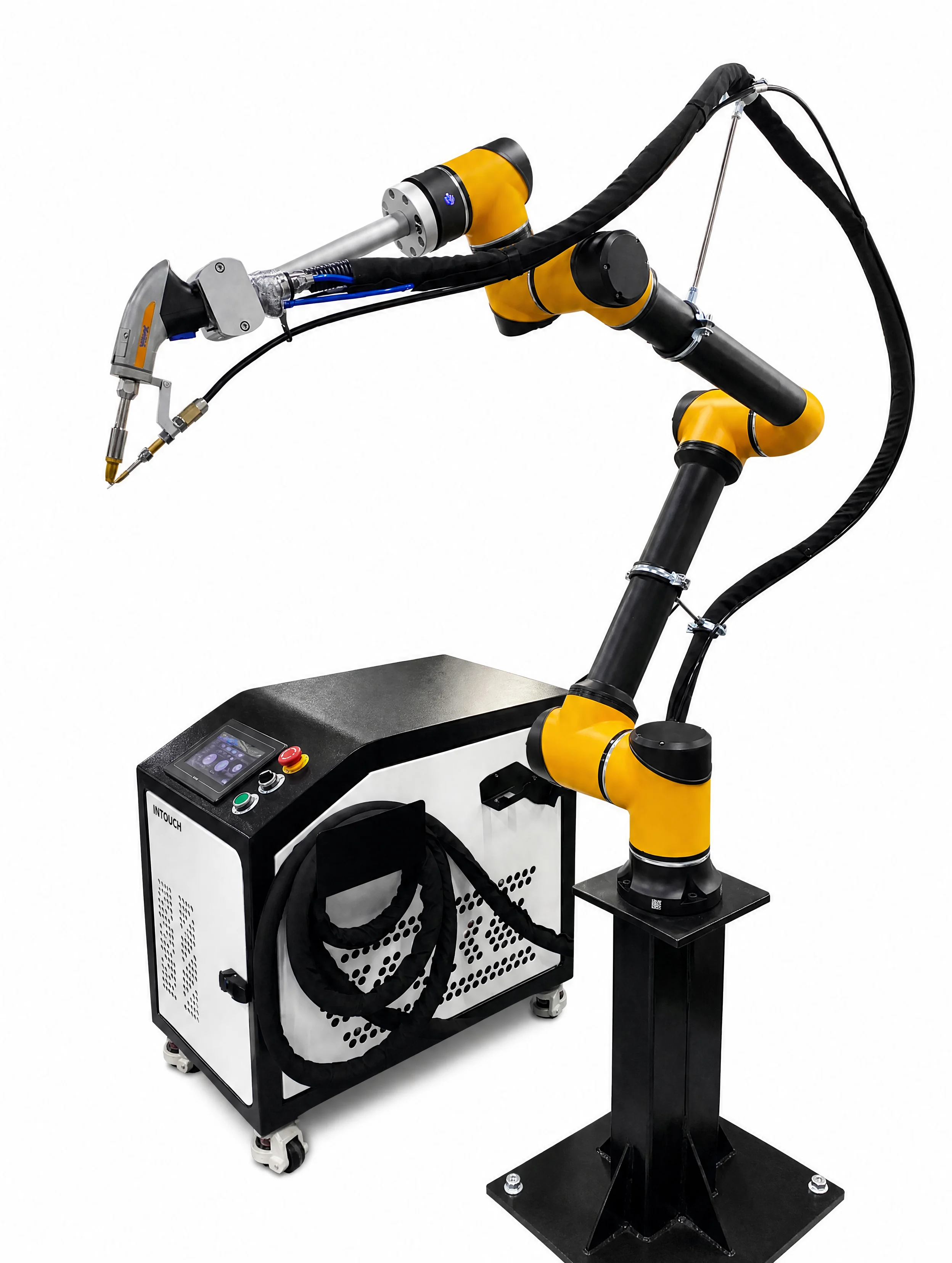

Use the detachable laser welding gun by hand or mount it on a six-axis collaborative arm. Repeated seams can follow a taught robot path, while manual operation supports varied parts and touch-up work. Choose the air-cooled or water-cooled laser package for the application.

Operating modes2handheld / robot

Working radius900–1,400mm options

Laser range0.8–6kW by version

Request a quote ← All cobot systems

The quotation defines the robot, process equipment, fixtures, safeguarding, installation and acceptance scope for your application.

Specifications

TY-HS5019-1 configuration

Machine configuration

Model: TY-HS5019-1

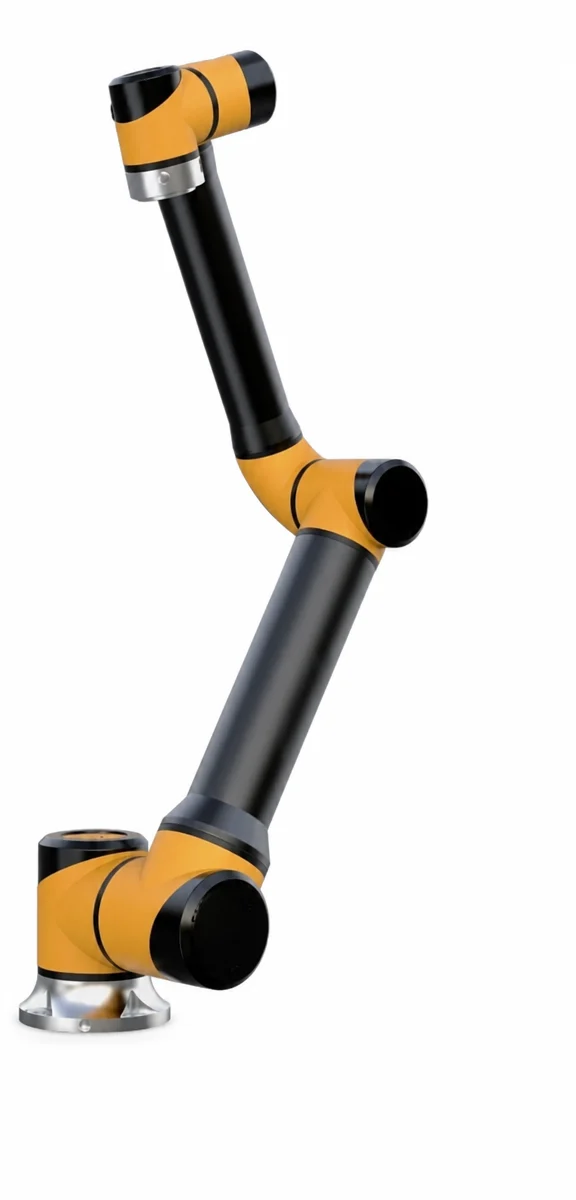

Robot axes: Six rotational joints
Working-radius options: 900 / 1,300 / 1,400 mm
Air-cooled laser options: 800 / 1,200 / 1,500 / 2,000 W
Water-cooled laser options: 1,500 / 2,000 / 3,000 / 6,000 W
Operating modes: Handheld / cobot-mounted detachable welding head

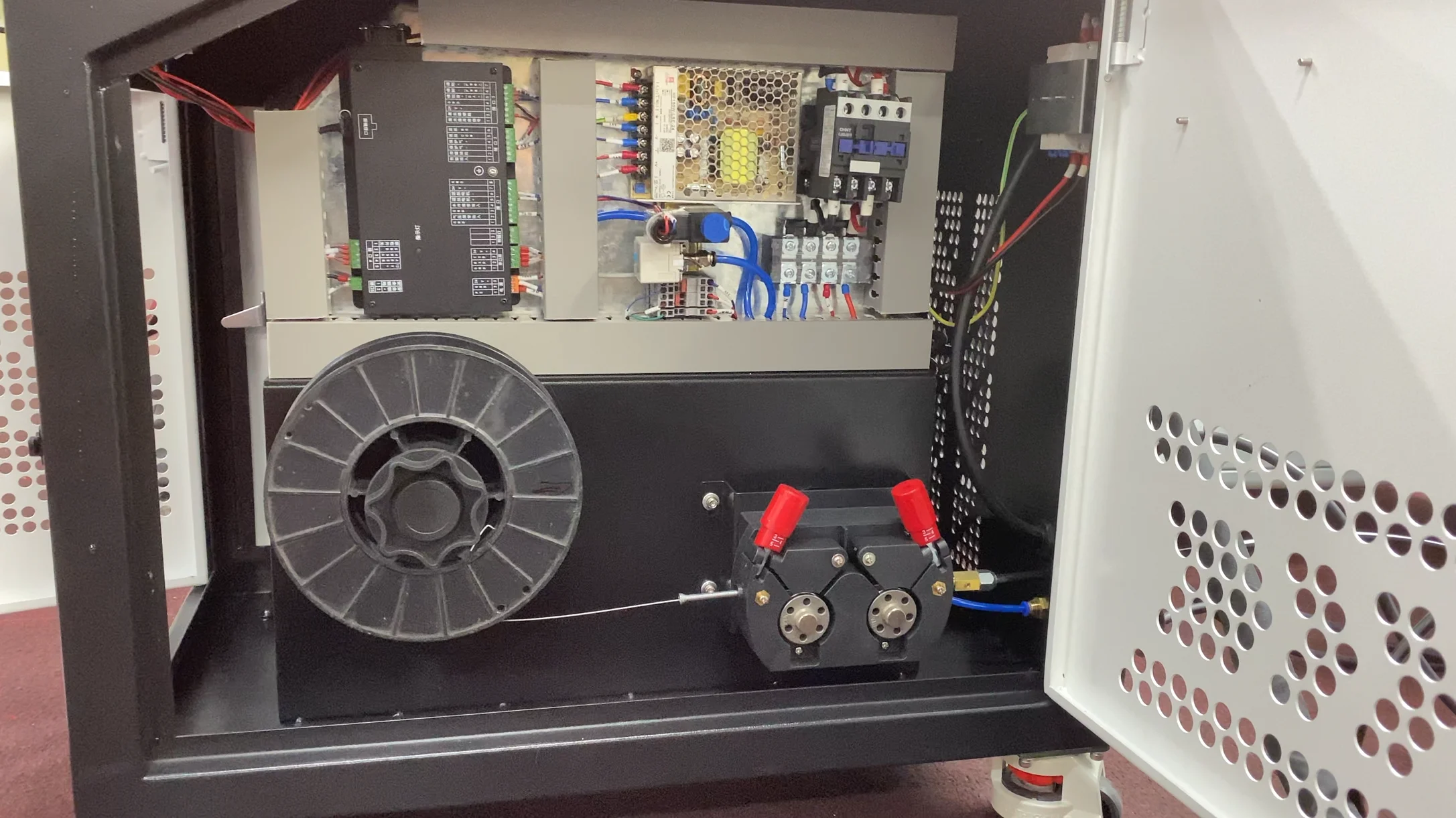

Wire feed: Automatic wire feeder
Teaching: Drag teaching / graphical programming
Fiber length options: 10 / 15 m
Power supply: 220 V / 380 V according to laser configuration

Handheld and Cobot Laser Welding Machine configuration options
Machine configuration
Model	TY-HS5019-1
Robot axes	Six rotational joints
Working-radius options	900 / 1,300 / 1,400 mm
Air-cooled laser options	800 / 1,200 / 1,500 / 2,000 W
Water-cooled laser options	1,500 / 2,000 / 3,000 / 6,000 W
Operating modes	Handheld / cobot-mounted detachable welding head
Wire feed	Automatic wire feeder
Teaching	Drag teaching / graphical programming
Fiber length options	10 / 15 m
Power supply	220 V / 380 V according to laser configuration

Features

Configure the system around your production task

One gun, two operating modes

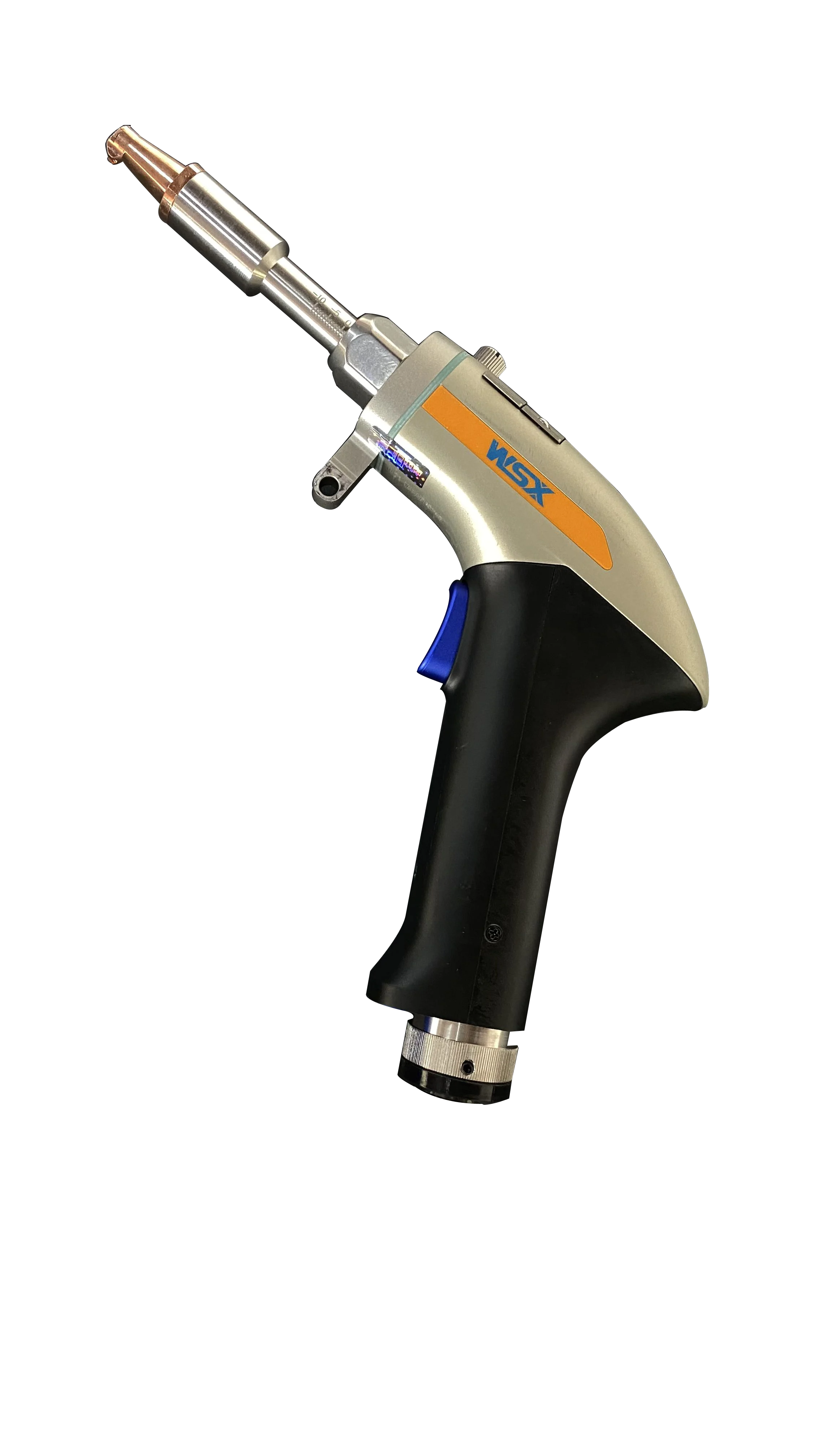

Detach the welding gun for manual access or mount it on the arm for repeated programmed seams.

Drag teaching

Guide the collaborative arm through the desired path and prepare the welding sequence.

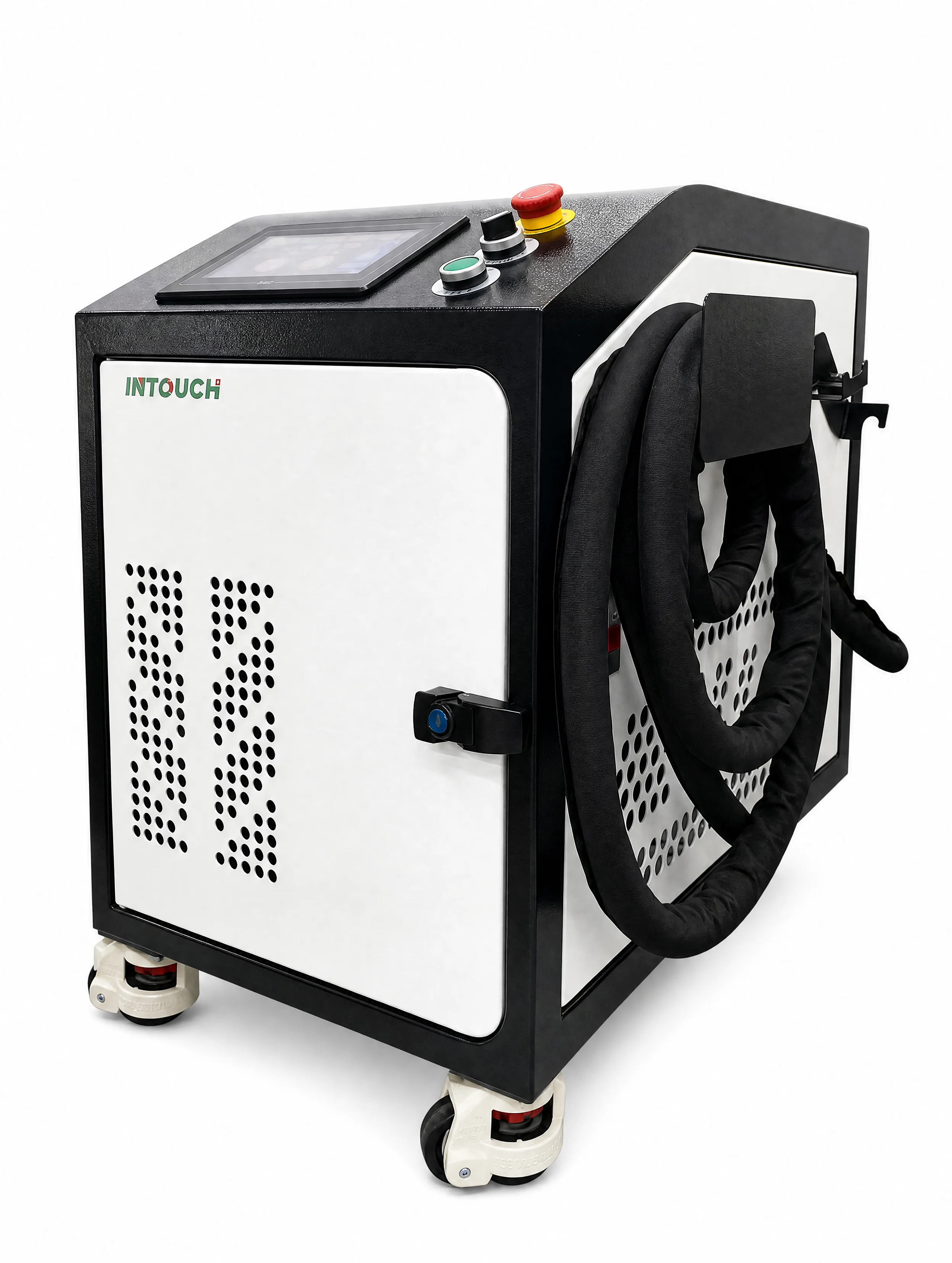

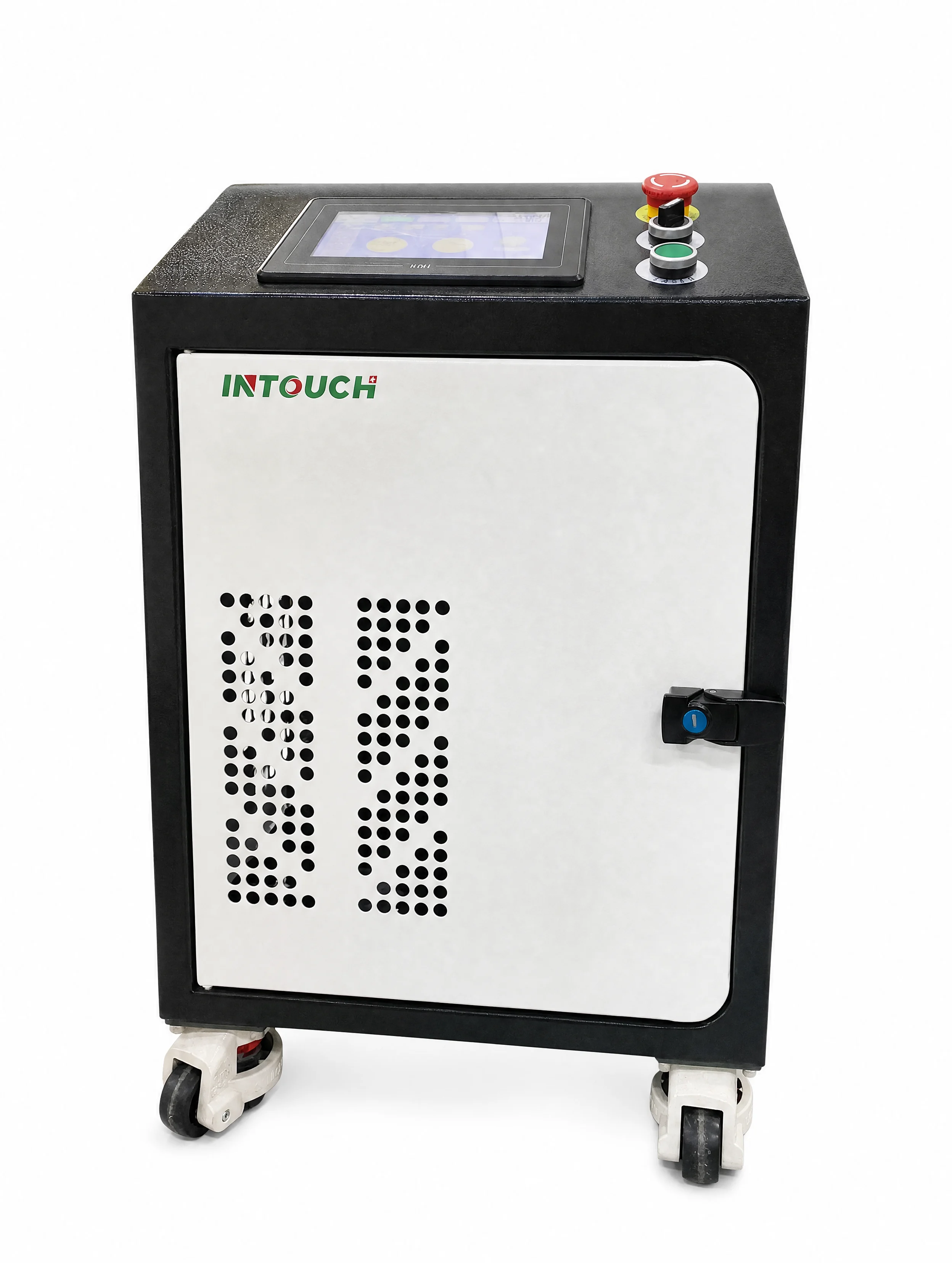

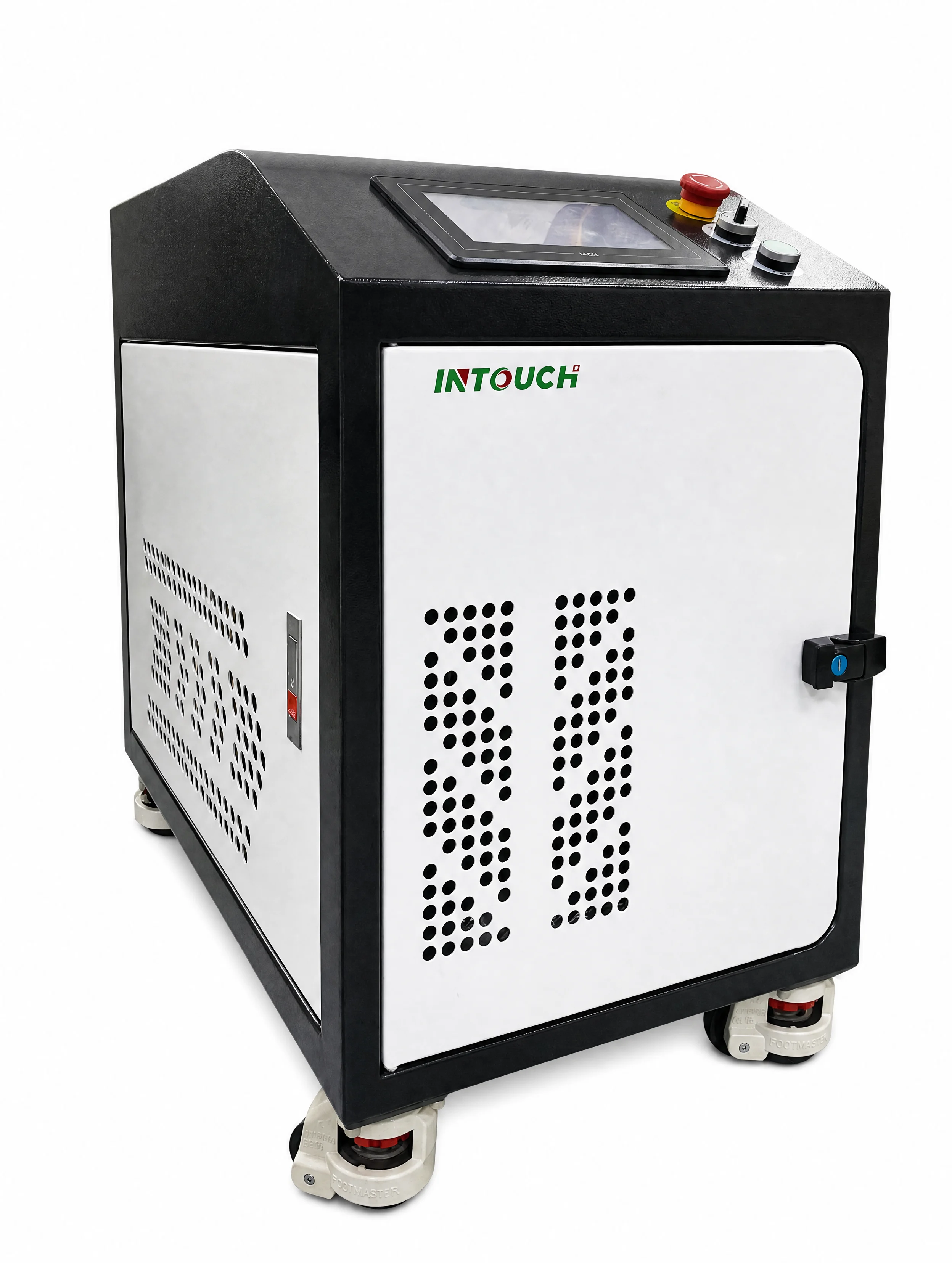

Air- or water-cooled package

Keep the laser power range tied to the selected cooling configuration.

Flexible workholding

Select a bench, pedestal or positioner arrangement around the seam and workpiece access.

Project configuration

From workpiece review to cell integration

01
Workpiece and production review
02
Robot and process selection
03
Fixture and layout planning
04
Programming and interface setup
05
Safeguarding and access review
06
Process trials and acceptance

01
Workpiece and production review
02
Robot and process selection
03
Fixture and layout planning
04
Programming and interface setup
05
Safeguarding and access review
06
Process trials and acceptance

Application scope

Parts and production applications

Review material, geometry, access and production requirements with the proposed configuration.

Kitchen and sanitary wareStainless-steel assemblies and fabricated kitchen components

Furniture and sheet metalFrames, cabinets, doors and mixed-batch fabrication

Automotive componentsRepeatable joints with manual access available for varied workpieces

Compare related robot configurations

Collaborative Robot Laser Welding Machine

TY-HS5019-2

An integrated collaborative-arm laser welding workstation with a precision welding head and flexible workholding. Teach repeatable paths for circular seams, curved joints and visible metal assemblies, with the robot and fixture selected around the part.

Collaborative Robot MIG Welding Machine

TY-HS5019-3

Combine a six-axis collaborative arm, a digital MIG/MAG welding power source and workpiece positioning for structural metal fabrication. Configure the torch, wire, shielding gas and fixture for the material, joint and welding sequence.

Explore the applications and laser processes connected to this equipment.

Stainless-steel sinks, kettles and fabricated kitchen components

Kitchen & sanitary ware

Cutting, welding and marking for sinks, showerheads, tee pipes and kettles.

View solution

Vehicle body structure, battery tray and automotive metal components

Automotive components

Laser processing for body structures, powertrain parts and battery components.

View solution

View all industry solutions

Define the complete workstation before selecting the robot

Workpiece and tooling

Provide drawings, material, dimensions, mass and the required operations. Include fixture access and the intended loading method so the robot and tooling can be selected together.

Integration and acceptance

Specify production targets, connected equipment and available floor space. Agree the process trial, guarding, interfaces and acceptance criteria for the complete cell.

Machine selection questions

How is the TY-HS5019-1 configured?

What information is needed for a quotation?

Send representative part drawings, material and dimensions, required operations, target output and available layout. Include connected equipment and any requested fixture or positioner.

How are guarding and operator access defined?

The complete application determines protective measures. The process, tool, workpiece, fixtures and operator access are considered together when defining guarding and interlocks.

Request a quote

Tell us the part. We will tell you the machine.

Price and delivery depend on the robot, process package, workholding, safeguarding and integration scope.
