Automatic sheet storage

Metal Sheet Storage System

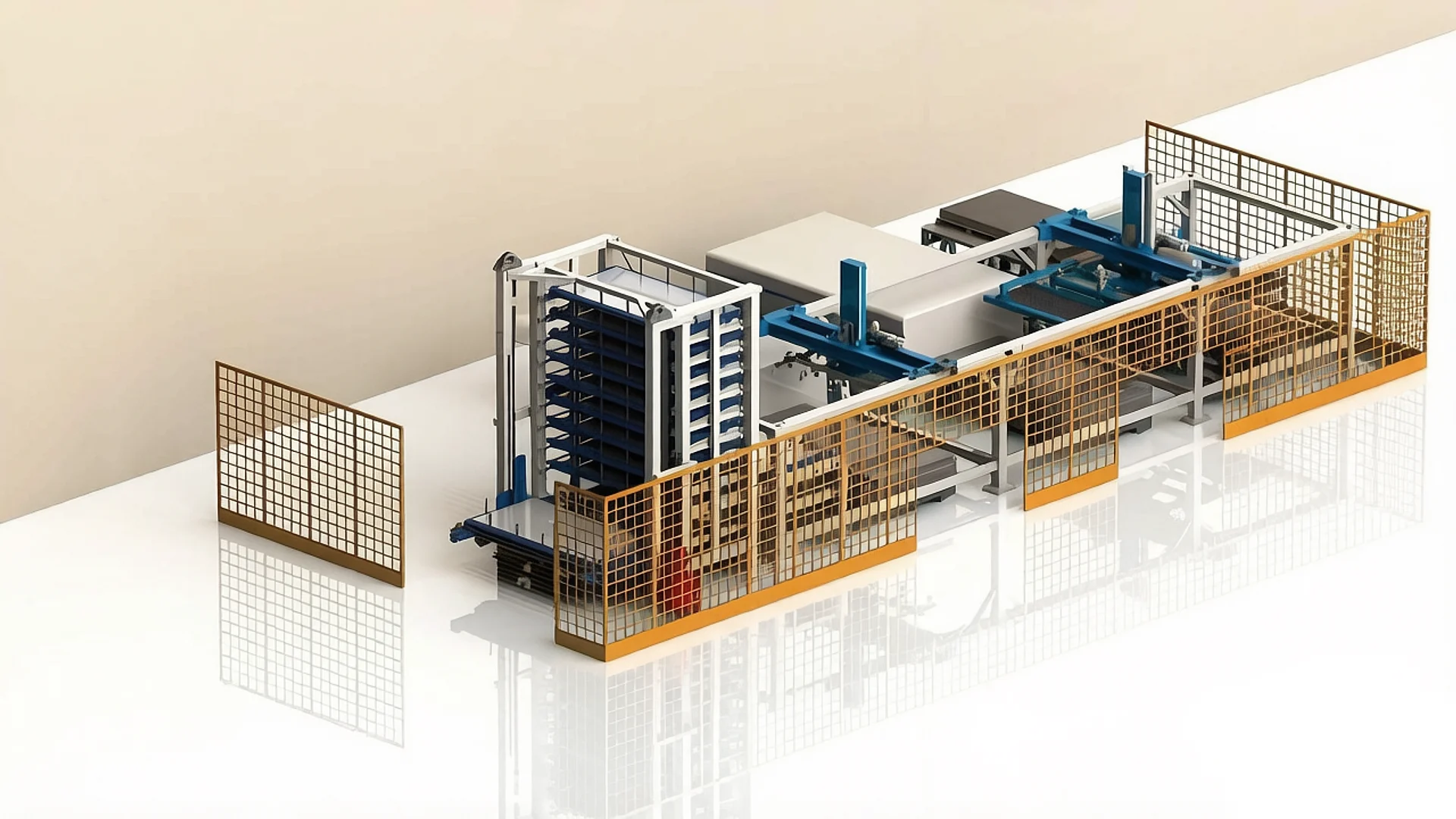

This automated sheet-metal storage tower connects stored stock with material allocation and laser-cutting workflows. Select one of three listed formats and a layer configuration, then define sheet loads, handling interfaces and the required MES connection.

Storage configuration6-13layers

Max sheet weight2,000kg

Max sheet length6,000mm

Request a quote ← All smart factory systems

Whole-machine warranty: 2 years · Final price and delivery timing depend on sheet data, storage format, layer count, load class, machine interfaces, MES scope, layout, guarding, utilities, installation and acceptance requirements.

Specifications

SM-series-03 model comparison

Compare all listed models and their working areas in one complete table. Rows spanning the model columns are series-wide specifications.

LGD+RW3015

Maximum loading / unloading size: 3,000 × 1,500 mm / 118.1 × 59.1 in
Listed minimum-size options: 1,200 × 1,000 mm / 47.2 × 39.4 in · 2,000 × 1,000 mm / 78.7 × 39.4 in
Listed sheet-weight options: 1,000 / 2,000 kg · 2,205 / 4,409 lb
Storage layers: 6 / 8 / 10 / 12 / 13 layers
Single-deck loading height: 280 mm / 11.0 in
Listed sheet materials: Carbon steel / stainless steel
Control: Smart scheduling system
Safety: Multiple safety monitoring systems
Structure: Modular design
Power supply: 380 V / 50 Hz
Whole-machine warranty: 2 years

LGD+RW4020

Maximum loading / unloading size: 4,000 × 2,000 mm / 157.5 × 78.7 in
Listed minimum-size options: 1,200 × 1,000 mm / 47.2 × 39.4 in · 2,000 × 1,000 mm / 78.7 × 39.4 in
Listed sheet-weight options: 1,000 / 2,000 kg · 2,205 / 4,409 lb
Storage layers: 6 / 8 / 10 / 12 / 13 layers
Single-deck loading height: 280 mm / 11.0 in
Listed sheet materials: Carbon steel / stainless steel
Control: Smart scheduling system
Safety: Multiple safety monitoring systems
Structure: Modular design
Power supply: 380 V / 50 Hz
Whole-machine warranty: 2 years

LGD+RW6025

Maximum loading / unloading size: 6,000 × 2,500 mm / 236.2 × 98.4 in
Listed minimum-size options: 1,200 × 1,000 mm / 47.2 × 39.4 in · 2,000 × 1,000 mm / 78.7 × 39.4 in
Listed sheet-weight options: 1,000 / 2,000 kg · 2,205 / 4,409 lb
Storage layers: 6 / 8 / 10 / 12 / 13 layers
Single-deck loading height: 280 mm / 11.0 in
Listed sheet materials: Carbon steel / stainless steel
Control: Smart scheduling system
Safety: Multiple safety monitoring systems
Structure: Modular design
Power supply: 380 V / 50 Hz
Whole-machine warranty: 2 years

SM-series-03 automatic sheet-storage formats and shared configuration options
Specification	LGD+RW3015	LGD+RW4020	LGD+RW6025
Maximum loading / unloading size	3,000 × 1,500 mm / 118.1 × 59.1 in	4,000 × 2,000 mm / 157.5 × 78.7 in	6,000 × 2,500 mm / 236.2 × 98.4 in
Listed minimum-size options	1,200 × 1,000 mm / 47.2 × 39.4 in · 2,000 × 1,000 mm / 78.7 × 39.4 in
Listed sheet-weight options	1,000 / 2,000 kg · 2,205 / 4,409 lb
Storage layers	6 / 8 / 10 / 12 / 13 layers
Single-deck loading height	280 mm / 11.0 in
Listed sheet materials	Carbon steel / stainless steel
Control	Smart scheduling system
Safety	Multiple safety monitoring systems
Structure	Modular design
Power supply	380 V / 50 Hz
Whole-machine warranty	2 years

Features

Connect sheet inventory with laser cutting production

Configurable 6-13-layer storage

Choose from the listed 6, 8, 10, 12 and 13-layer tower configurations after reviewing sheet mix, inventory targets, access frequency and available building height.

Three listed sheet formats

LGD+RW3015, LGD+RW4020 and LGD+RW6025 cover maximum loading and unloading sizes from 3,000 × 1,500 mm to 6,000 × 2,500 mm.

Up to 2,000 kg sheet capacity

Select a 1,000 kg or 2,000 kg sheet-weight class for carbon-steel and stainless-steel storage projects after the format and layer configuration are confirmed.

Automatic material allocation

The system is configured to distribute stored sheet material on demand and coordinate loading and unloading within the connected production workflow.

Laser-cutter and MES connectivity

Storage and handling can be linked with the laser cutting machine and MES workflow for coordinated material movement from inventory to processing.

Modular layout with safety monitoring

Tower arrangement, interfaces and access zones are configured for the floor plan, with multiple safety monitoring systems included in the listed scope.

Project configuration

From inventory data to installation scope

01
Sheet grade, size, thickness and weight review
02
Inventory mix and access-frequency confirmation
03
LGD+RW format selection
04
Layer count and load-class configuration
05
Loading and unloading interface planning
06
Laser-cutter and MES integration scope
07
Safety, utilities and floor-layout planning
08
Acceptance, installation and operator-training scope

01
Sheet grade, size, thickness and weight review
02
Inventory mix and access-frequency confirmation
03
LGD+RW format selection
04
Layer count and load-class configuration
05
Loading and unloading interface planning
06
Laser-cutter and MES integration scope
07
Safety, utilities and floor-layout planning
08
Acceptance, installation and operator-training scope

System scope

Configure storage capacity and production interfaces together

Layer count and load class are selected against the sheet mix, access frequency, floor plan and connected equipment. Available minimum-size and weight options are finalized with the selected format and layer configuration.

Storage configuration

Formats: LGD+RW3015 / LGD+RW4020 / LGD+RW6025
Storage height: 6 / 8 / 10 / 12 / 13 layers
Deck spacing: 280 mm / 11.0 in
Load classes: 1,000 / 2,000 kg · 2,205 / 4,409 lb

Control and integration

Scheduling: Smart scheduling system
Machine link: Laser cutting machine integration
Production data: MES connectivity
Safeguarding: Multiple safety monitoring systems

Compare connected sheet-production systems

Connected production

Smart factory systems

Compare coil-fed cutting, automatic sheet handling and sheet-storage systems.

Automatic sheet handling

SM-series-02

Review synchronized sheet loading and full-sheet unloading for laser cutting production.

Coil-fed laser blanking

SM-series-01

Review the integrated uncoiling, leveling, feeding and laser-cutting production line.

Browse our industry solutions and discuss the equipment, fixtures and process requirements for your application.

View all industry solutions

Plan inventory access and capacity on a confirmed basis

Match format and layers to the stock mix

List the sheet grades, formats, thicknesses, quantities and retrieval frequency. Compare LGD+RW3015, LGD+RW4020 and LGD+RW6025 with the listed 6, 8, 10, 12 or 13-layer options to define the required storage arrangement.

Confirm what each weight rating applies to

The current table identifies 1,000 and 2,000 kg as sheet-weight options. Confirm the applicable load basis and selected configuration with the supplier; do not multiply these values by layer count to derive a total tower capacity.

Review the building and production interfaces

Provide available floor area, clear height, access routes and connected equipment. The 280 mm single-deck loading-height listing is not a complete installed-height calculation. Laser-cutter handling and MES task exchange need an agreed interface and installation scope.

Machine selection questions

How is this different from a manual sheet rack?

The described tower includes automatic material allocation and scheduling for a connected production workflow. Its handling and machine interfaces are configured for the project rather than leaving all stock retrieval as a manual rack operation.

How do I select the format and layer count?

Start with the largest and smallest sheets, stock mix, quantities and access frequency, then review the listed formats and layer options against the building and handling layout.

Is 2,000 kg the total tower capacity or capacity per layer?

The current source labels 1,000 and 2,000 kg as sheet-weight options. A total-tower or per-layer capacity must be confirmed for the selected configuration; neither should be inferred by multiplying the listed values.

Can the tower connect to our laser cutter and MES?

Laser-cutter and MES integration are listed capabilities. Confirm the physical handling interface, task data, system responsibilities and acceptance sequence for the existing production environment.

What is needed for a storage-system quote?

Send sheet grades, dimensions, weights, inventory quantities and retrieval frequency, along with a floor plan and clear height. Identify the laser cutters, loading equipment and MES workflow that need to connect.
