Single-platform sheet cutting

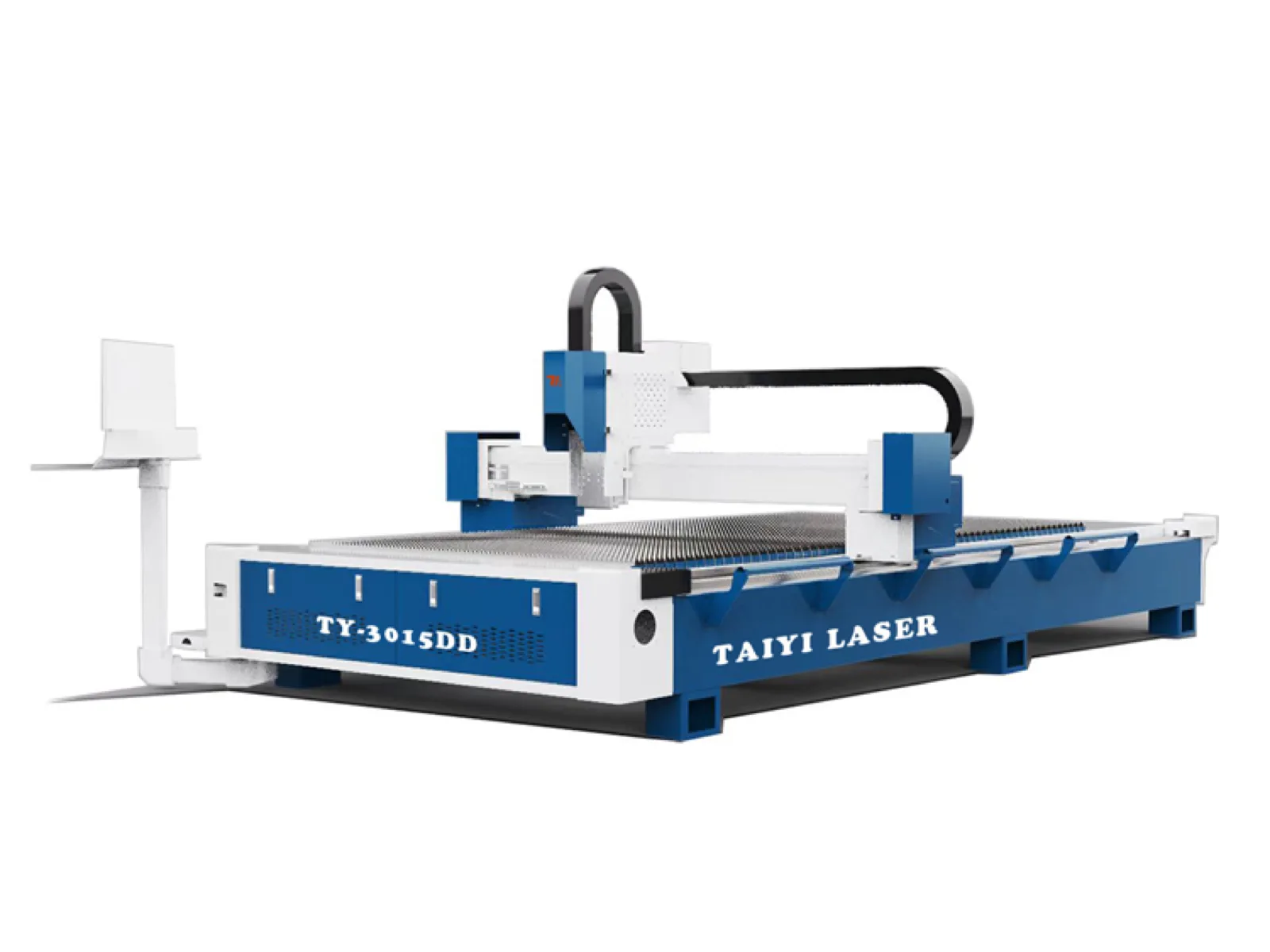

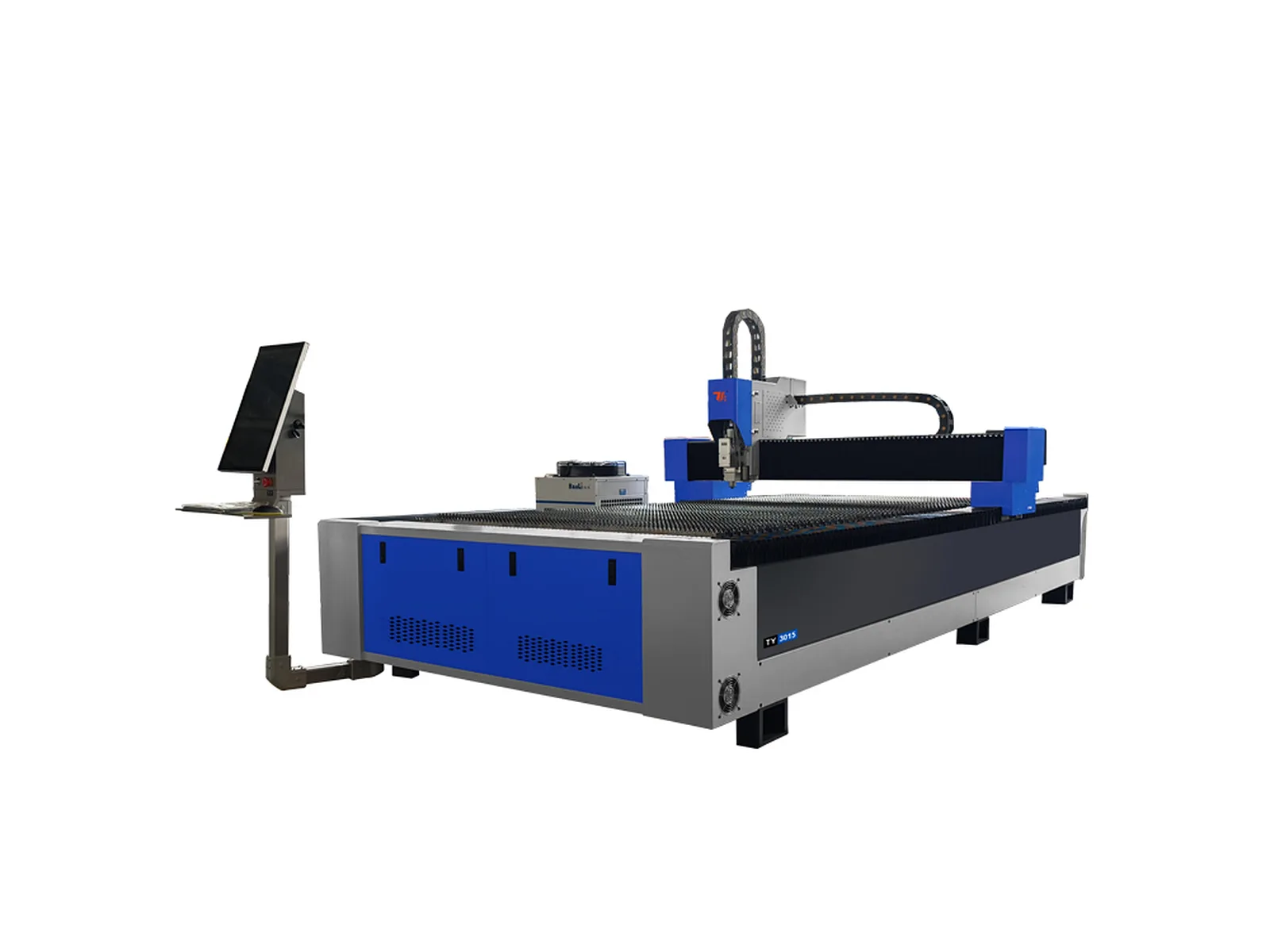

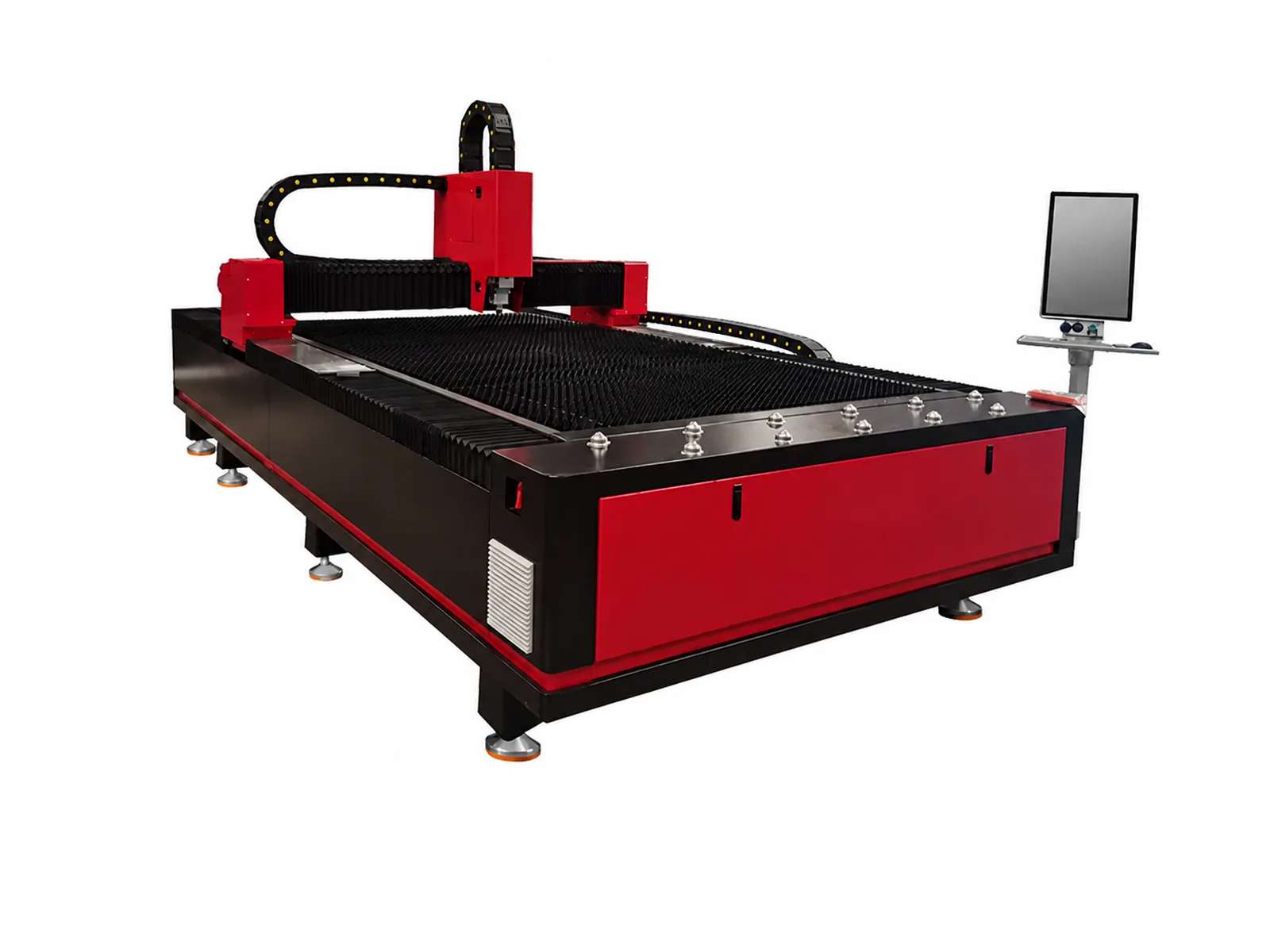

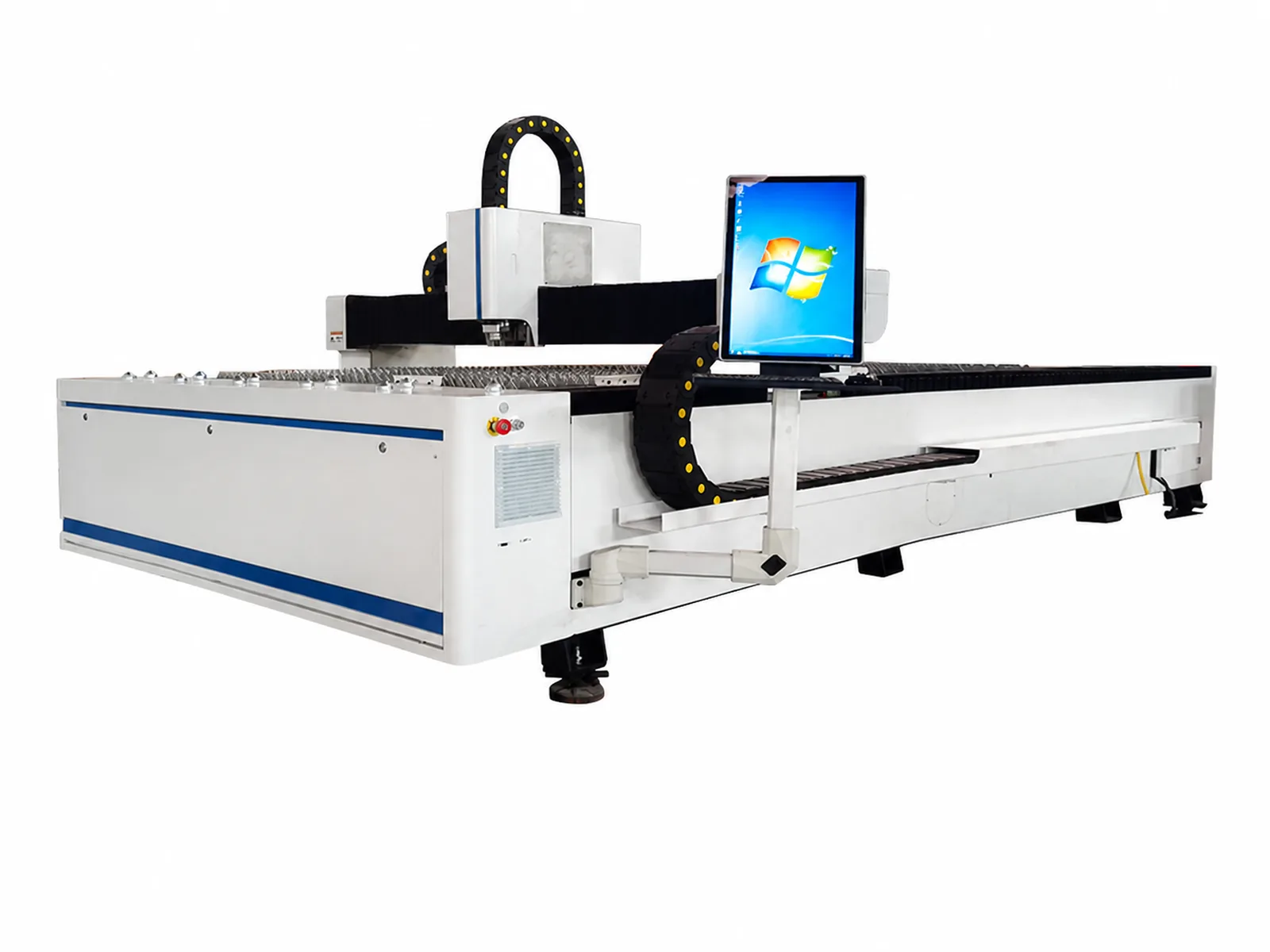

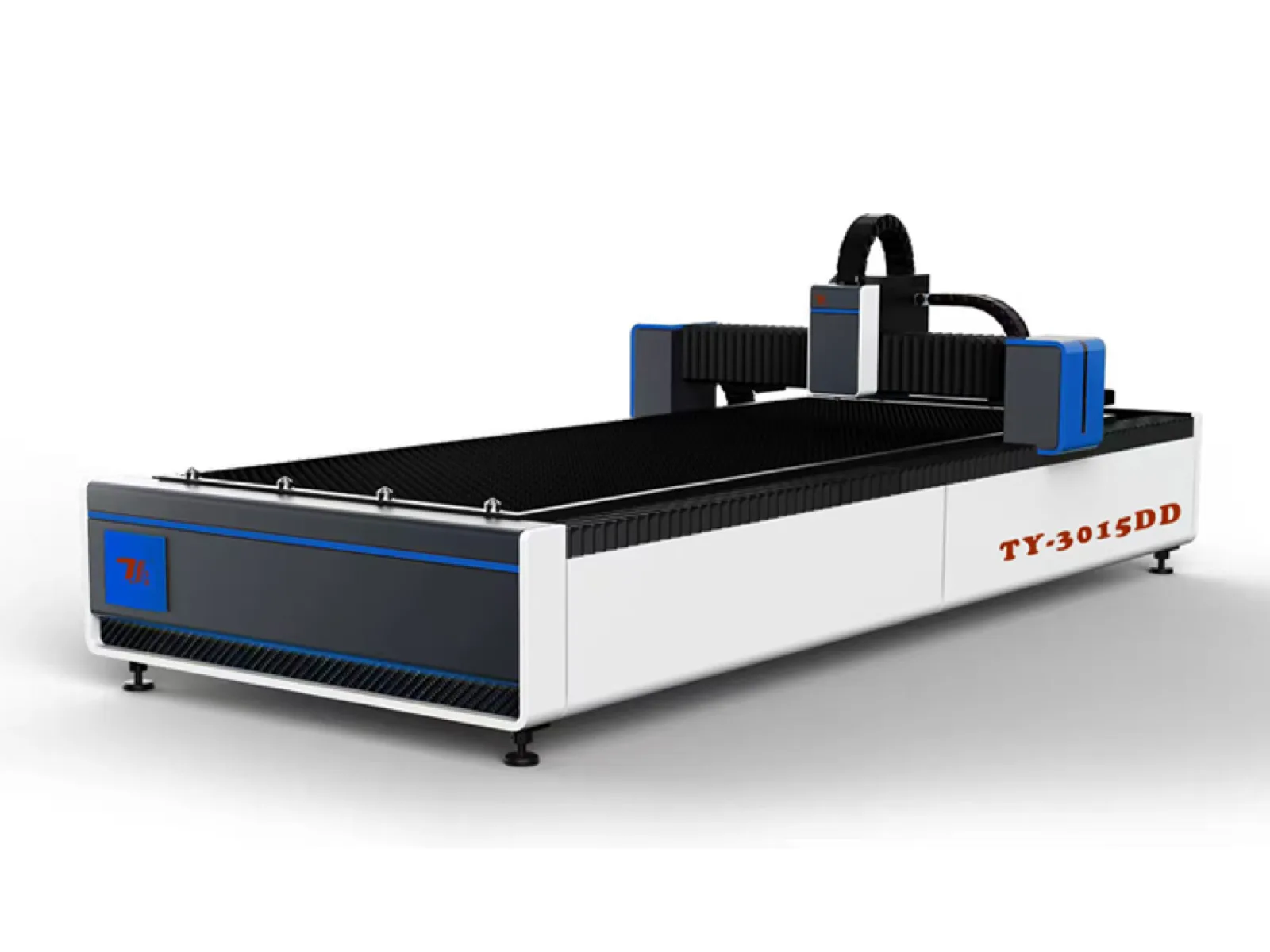

Single-Platform Fiber Laser Cutting Machine

The TY-3015DD series is an open, single-platform fiber laser cutter for sheet-metal production. Compare nine listed models by sheet format and table access, then select the laser, cutting head and controls for your material and part requirements.

Power options1.5-20kW

Repeat accuracy±0.02mm

Listed models9models

Request a quote ← All cutting machines

Whole-machine warranty: 2 years · MOQ: 1 set · Listed delivery time: 15-45 working days · Final price depends on the selected configuration.

Specifications

Single-platform model comparison

Compare all listed models and their working areas in one complete table. Rows spanning the model columns are series-wide specifications.

TY-3015DD

Working area (final mapping to be confirmed): 3,050 × 1,500 / 3,000 × 1,500 mm (both listed)
Laser power (Optional): 1,500 / 2,000 / 3,000 / 6,000 / 10,000 / 12,000 / 20,000 W
Maximum positioning speed: 80 m/min
Maximum acceleration: 1.0 G
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Laser source (Optional): Raycus / IPG / BWT / MAX
Cutting head (Optional): Raytools / WSX
Control system (Optional; final package to be confirmed): Advantech / CypCut
Servo motor (Optional): Yaskawa / Inovance
Transmission: Double-drive gear rack
Guide rail: Taiwan Hiwin
Power supply: 380 V / 50 Hz
Working temperature: 0-50 ℃
Cooling method: Water cooling
Continuous working time: 24 hours
Whole-machine warranty: 2 years
Minimum order: 1 set
Listed delivery time (final timing to be confirmed): 15-45 working days

TY-4015DD

Working area (final mapping to be confirmed): 4,000 × 1,500 mm
Laser power (Optional): 1,500 / 2,000 / 3,000 / 6,000 / 10,000 / 12,000 / 20,000 W
Maximum positioning speed: 80 m/min
Maximum acceleration: 1.0 G
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Laser source (Optional): Raycus / IPG / BWT / MAX
Cutting head (Optional): Raytools / WSX
Control system (Optional; final package to be confirmed): Advantech / CypCut
Servo motor (Optional): Yaskawa / Inovance
Transmission: Double-drive gear rack
Guide rail: Taiwan Hiwin
Power supply: 380 V / 50 Hz
Working temperature: 0-50 ℃
Cooling method: Water cooling
Continuous working time: 24 hours
Whole-machine warranty: 2 years
Minimum order: 1 set
Listed delivery time (final timing to be confirmed): 15-45 working days

TY-4020DD

Working area (final mapping to be confirmed): 4,000 × 2,000 mm
Laser power (Optional): 1,500 / 2,000 / 3,000 / 6,000 / 10,000 / 12,000 / 20,000 W
Maximum positioning speed: 80 m/min
Maximum acceleration: 1.0 G
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Laser source (Optional): Raycus / IPG / BWT / MAX
Cutting head (Optional): Raytools / WSX
Control system (Optional; final package to be confirmed): Advantech / CypCut
Servo motor (Optional): Yaskawa / Inovance
Transmission: Double-drive gear rack
Guide rail: Taiwan Hiwin
Power supply: 380 V / 50 Hz
Working temperature: 0-50 ℃
Cooling method: Water cooling
Continuous working time: 24 hours
Whole-machine warranty: 2 years
Minimum order: 1 set
Listed delivery time (final timing to be confirmed): 15-45 working days

TY-6015DD

Working area (final mapping to be confirmed): 6,000 × 1,500 mm
Laser power (Optional): 1,500 / 2,000 / 3,000 / 6,000 / 10,000 / 12,000 / 20,000 W
Maximum positioning speed: 80 m/min
Maximum acceleration: 1.0 G
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Laser source (Optional): Raycus / IPG / BWT / MAX
Cutting head (Optional): Raytools / WSX
Control system (Optional; final package to be confirmed): Advantech / CypCut
Servo motor (Optional): Yaskawa / Inovance
Transmission: Double-drive gear rack
Guide rail: Taiwan Hiwin
Power supply: 380 V / 50 Hz
Working temperature: 0-50 ℃
Cooling method: Water cooling
Continuous working time: 24 hours
Whole-machine warranty: 2 years
Minimum order: 1 set
Listed delivery time (final timing to be confirmed): 15-45 working days

TY-6020DD

Working area (final mapping to be confirmed): 6,000 × 2,000 mm
Laser power (Optional): 1,500 / 2,000 / 3,000 / 6,000 / 10,000 / 12,000 / 20,000 W
Maximum positioning speed: 80 m/min
Maximum acceleration: 1.0 G
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Laser source (Optional): Raycus / IPG / BWT / MAX
Cutting head (Optional): Raytools / WSX
Control system (Optional; final package to be confirmed): Advantech / CypCut
Servo motor (Optional): Yaskawa / Inovance
Transmission: Double-drive gear rack
Guide rail: Taiwan Hiwin
Power supply: 380 V / 50 Hz
Working temperature: 0-50 ℃
Cooling method: Water cooling
Continuous working time: 24 hours
Whole-machine warranty: 2 years
Minimum order: 1 set
Listed delivery time (final timing to be confirmed): 15-45 working days

TY-6025DD

Working area (final mapping to be confirmed): 6,000 × 2,500 mm
Laser power (Optional): 1,500 / 2,000 / 3,000 / 6,000 / 10,000 / 12,000 / 20,000 W
Maximum positioning speed: 80 m/min
Maximum acceleration: 1.0 G
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Laser source (Optional): Raycus / IPG / BWT / MAX
Cutting head (Optional): Raytools / WSX
Control system (Optional; final package to be confirmed): Advantech / CypCut
Servo motor (Optional): Yaskawa / Inovance
Transmission: Double-drive gear rack
Guide rail: Taiwan Hiwin
Power supply: 380 V / 50 Hz
Working temperature: 0-50 ℃
Cooling method: Water cooling
Continuous working time: 24 hours
Whole-machine warranty: 2 years
Minimum order: 1 set
Listed delivery time (final timing to be confirmed): 15-45 working days

TY-8025DD

Working area (final mapping to be confirmed): 8,000 × 2,500 mm
Laser power (Optional): 1,500 / 2,000 / 3,000 / 6,000 / 10,000 / 12,000 / 20,000 W
Maximum positioning speed: 80 m/min
Maximum acceleration: 1.0 G
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Laser source (Optional): Raycus / IPG / BWT / MAX
Cutting head (Optional): Raytools / WSX
Control system (Optional; final package to be confirmed): Advantech / CypCut
Servo motor (Optional): Yaskawa / Inovance
Transmission: Double-drive gear rack
Guide rail: Taiwan Hiwin
Power supply: 380 V / 50 Hz
Working temperature: 0-50 ℃
Cooling method: Water cooling
Continuous working time: 24 hours
Whole-machine warranty: 2 years
Minimum order: 1 set
Listed delivery time (final timing to be confirmed): 15-45 working days

TY-10025DD

Working area (final mapping to be confirmed): 10,000 × 2,500 mm
Laser power (Optional): 1,500 / 2,000 / 3,000 / 6,000 / 10,000 / 12,000 / 20,000 W
Maximum positioning speed: 80 m/min
Maximum acceleration: 1.0 G
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Laser source (Optional): Raycus / IPG / BWT / MAX
Cutting head (Optional): Raytools / WSX
Control system (Optional; final package to be confirmed): Advantech / CypCut
Servo motor (Optional): Yaskawa / Inovance
Transmission: Double-drive gear rack
Guide rail: Taiwan Hiwin
Power supply: 380 V / 50 Hz
Working temperature: 0-50 ℃
Cooling method: Water cooling
Continuous working time: 24 hours
Whole-machine warranty: 2 years
Minimum order: 1 set
Listed delivery time (final timing to be confirmed): 15-45 working days

TY-12025DD

Working area (final mapping to be confirmed): 12,000 × 2,500 mm
Laser power (Optional): 1,500 / 2,000 / 3,000 / 6,000 / 10,000 / 12,000 / 20,000 W
Maximum positioning speed: 80 m/min
Maximum acceleration: 1.0 G
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Laser source (Optional): Raycus / IPG / BWT / MAX
Cutting head (Optional): Raytools / WSX
Control system (Optional; final package to be confirmed): Advantech / CypCut
Servo motor (Optional): Yaskawa / Inovance
Transmission: Double-drive gear rack
Guide rail: Taiwan Hiwin
Power supply: 380 V / 50 Hz
Working temperature: 0-50 ℃
Cooling method: Water cooling
Continuous working time: 24 hours
Whole-machine warranty: 2 years
Minimum order: 1 set
Listed delivery time (final timing to be confirmed): 15-45 working days

Single-platform fiber laser cutting machine specifications by listed model
Specification	TY-3015DD	TY-4015DD	TY-4020DD	TY-6015DD	TY-6020DD	TY-6025DD	TY-8025DD	TY-10025DD	TY-12025DD
Working area (final mapping to be confirmed)	3,050 × 1,500 / 3,000 × 1,500 mm (both listed)	4,000 × 1,500 mm	4,000 × 2,000 mm	6,000 × 1,500 mm	6,000 × 2,000 mm	6,000 × 2,500 mm	8,000 × 2,500 mm	10,000 × 2,500 mm	12,000 × 2,500 mm
Laser power (Optional)	1,500 / 2,000 / 3,000 / 6,000 / 10,000 / 12,000 / 20,000 W
Maximum positioning speed	80 m/min
Maximum acceleration	1.0 G
Positioning accuracy	±0.03 mm
Repeat positioning accuracy	±0.02 mm
Laser source (Optional)	Raycus / IPG / BWT / MAX
Cutting head (Optional)	Raytools / WSX
Control system (Optional; final package to be confirmed)	Advantech / CypCut
Servo motor (Optional)	Yaskawa / Inovance
Transmission	Double-drive gear rack
Guide rail	Taiwan Hiwin
Power supply	380 V / 50 Hz
Working temperature	0-50 ℃
Cooling method	Water cooling
Continuous working time	24 hours
Whole-machine warranty	2 years
Minimum order	1 set
Listed delivery time (final timing to be confirmed)	15-45 working days

Features

Built for accessible sheet loading and configurable cutting

Open single-platform layout

The open table keeps sheet loading, alignment and part removal directly accessible for general sheet-metal cutting work.

Industrial machine bed

The supplied product material specifies an industrial machine bed as the base for the open-table cutting platform.

Cast-aluminum beam

A cast-aluminum beam is specified for the moving gantry across the cutting table.

Gantry dual-drive motion

The supplied configuration uses a double-drive gear rack with Taiwan Hiwin guide rails for motion across the open cutting table.

Configurable laser and cutting head

Laser source and cutting-head options are selected together with the working area, material and production requirements.

CypCut / CypOne functions listed

The supplied control material lists drawing import, graphical process setup, flexible production modes, production statistics, edge finding and dual-drive error offset. The final software package is confirmed with the selected configuration.

Production and inspection

From machine-bed preparation to delivery

01
Machine-bed welding
02
Beam preparation
03
Heat treatment
04
Precision machining
05
Pre-assembly inspection
06
Machine assembly
07
Testing, debugging and acceptance
08
Delivery

01
Machine-bed welding
02
Beam preparation
03
Heat treatment
04
Precision machining
05
Pre-assembly inspection
06
Machine assembly
07
Testing, debugging and acceptance
08
Delivery

Cutting scope

Metal sheets listed for the TY-3015DD series

Final laser power, cutting head and process parameters are confirmed against the material grade and thickness.

Carbon steel and galvanized sheetPower- and process-dependent cutting configuration

Stainless steel and titanium alloySheet cutting for fabrication and precision components

Aluminum alloy, copper and brassConfiguration confirmed against material and thickness

Other laser machine paths

Sheet cutting

Fiber laser cutting machines

Compare enclosed, ground-rail and compact systems.

Tube cutting

Laser tube cutting machines

Semi-automatic, fully automatic, three-chuck and economical tube systems.

Automation range

Robot automation systems

Robot laser cutting, welding and material-handling systems.

Explore the applications and laser processes connected to this equipment.

Stainless-steel sinks, kettles and fabricated kitchen components

Kitchen & sanitary ware

Cutting, welding and marking for sinks, showerheads, tee pipes and kettles.

View solution

View all industry solutions

Choose the open table around stock and part handling

Match the model to the sheet you will load

The nine-model comparison covers different sheet lengths and widths. Start with the incoming stock and nesting layout rather than the finished-part size alone. For TY-3015DD, the supplied records list both 3,050 × 1,500 mm and 3,000 × 1,500 mm; confirm the offered working area in the quotation.

Plan the complete single-table cycle

Loading, cutting and collecting parts share one working table. Describe how stock will reach it and where the finished parts and remaining sheet will go. If preparing another sheet during cutting is central to the production plan, compare the enclosed exchange-table range before deciding.

Machine selection questions

How is a single-platform machine different from an exchange-table machine?

This series uses one open cutting table. An exchange-table machine alternates between tables. Compare access, stock changes, part collection and available workshop space to determine which workflow suits the job.

Which working area is available for TY-3015DD?

The source records list both 3,050 × 1,500 mm and 3,000 × 1,500 mm for this model. The comparison table preserves that difference. Confirm the actual offered dimensions against your stock and nesting requirements before placing an order.

Is ±0.02 mm repeat accuracy a finished-part tolerance?

No. Repeat positioning describes a machine motion characteristic. It does not establish the tolerance of every cut part. Material, process setup, geometry and the specified acceptance method also need to be reviewed.

How should I choose among the nine model formats?

Compare sheet length and width, nesting requirements and the handling space around the table. Then select power and the cutting package for the material and thickness. The model table supports that comparison but does not replace a layout review.

What determines the quoted single-platform configuration?

Working area, laser and cutting-head choices, controls and the required handling or integration scope determine the equipment package. Provide drawings, stock specifications and the intended workflow so alternatives can be compared on the same basis.

Request a quote

Tell us the part. We will tell you the machine.

Share your part drawing, material and production requirements. The quotation will identify the selected equipment, tooling, handling options and integration scope for your project.
