Round and square tube cutting
TY-G120F Laser Tube Cutting Machine
The TY-G120F is a 1.5 kW laser tube cutter with manual loading for 10–160 mm round and square tubes. Review your tube lengths and handling workflow against the approximately 6,500 mm processing range, with a semi-automatic feeding rack available as an option.
Machine price: US$16,866 · Optional semi-automatic feeding: +US$2,500 · Machine warranty: 1 year.
Specifications
TY-G120F technical specifications
Price and warranty
- Machine price
- US$16,866
- Optional semi-automatic feeding
- +US$2,500
- Machine warranty
- 1 year
Cutting capacity and motion
- Model
- TY-G120F
- Laser power
- 1,500 W
- Round tube diameter
- 10-160 mm
- Square tube size
- 10-160 mm
- Tube processing length
- Approximately 6,500 mm
- Repeat positioning accuracy
- ±0.02 mm
- Acceleration
- Approximately 1.6 G
- Tail length
- Approximately 60 mm
Dimensions and loading
- Machine dimensions (L × W × H)
- 8,004 × 1,212 × 1,916 mm
- With semi-automatic rack (L × W × H)
- 8,004 × 1,747 × 1,916 mm
- Machine weight
- Approximately 2 t
- Loading
- Manual; semi-automatic feeding rack optional
Core configuration
- Laser source
- Raycus
- Cutting head
- Weihong; manual focus, optional autofocus
- CNC control system
- Weihong
- Servo motors and drives
- Weihong
- Chuck
- Pneumatic rotary chuck
- Linear guides and sliders
- Taiwan AIK or equivalent
- Pneumatics
- AirTAC / JELPC
- Air control valves
- AirTAC / SMC
- Circuit breakers and relays
- Schneider / DELIXI
- Cooling
- Hanli dual-temperature water chiller
Features
Configure loading around your tube-cutting work
Manual or assisted loading
Use manual feeding for operator-loaded work, or select the optional semi-automatic rack to support tube loading.
Round and square tube clamping
Pneumatic rotary workholding supports the specified 10-160 mm round and square tube range.
Height-following cutting
An integrated height adjuster follows the tube surface during cutting. Review tube straightness and deformation when defining the process.
Weihong control and servo package
The CNC system, cutting head and servo drives form the motion and cutting-control configuration.
Focus configuration options
Manual focus is specified, with autofocus available as an option for the cutting-head package.
Dual-temperature water cooling
A Hanli chiller provides separate cooling circuits for the laser and optical components.
Configuration checklist
Define the machine package for your tubes
- 01
Tube shape and size
- 02
Tube processing length
- 03
1.5 kW laser package
- 04
Manual or assisted feeding
- 05
Manual focus or autofocus
- 06
Machine and rack footprint
- 07
Control and cooling package
- 08
Final order specification
Cutting scope
Round and square tube processing
Material grade, wall thickness, cut geometry and assist gas must be reviewed together before confirming cutting capability. Final technical parameters follow the order agreement.
Related products
Other tube cutting configurations
Semi-automatic tube cutting machines
Explore TY-G120-F, TY-S90L, TY-S120-L and TY-6024 systems.
Fully automatic tube cuttingTY-S120-G
Explore automated loading for repeat tube and profile production.
Three-chuck tube cuttingTY-28025
Explore three-chuck workholding for long tubes and structural profiles.
Explore industry solutions
Browse our industry solutions and discuss the equipment, fixtures and process requirements for your application.
View all industry solutionsChoose the G120F package around loading and tube geometry
Separate the machine from its feeding option

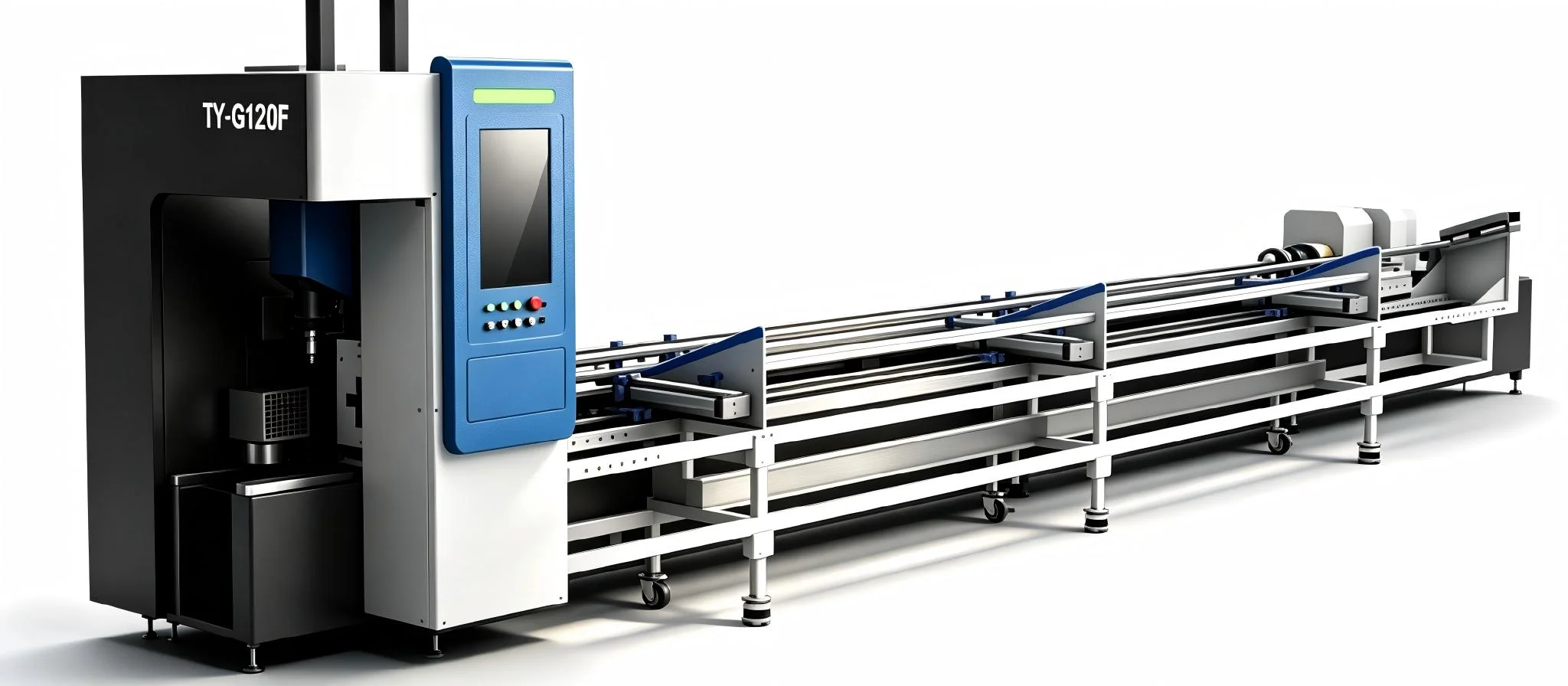

The listed machine price is US$16,866. The optional semi-automatic feeding system adds US$2,500 and changes the listed machine width. Compare the same scope when reviewing quotations: the feeding rack is not included merely because it appears in a layout illustration.
Check the complete tube job
Provide the cross-section, material, wall thickness, stock length and finished-part drawing. The 10–160 mm size range is listed for round and square tubes; it does not establish capacity for every structural profile or a common wall thickness across materials.
Machine selection questions
Is automatic tube loading included with TY-G120F?
The base configuration uses manual loading. A semi-automatic feeding rack is optional at a listed additional US$2,500. Confirm the selected loading arrangement and equipment scope in the order.
What is the listed price and warranty?
The listed machine price is US$16,866, with a one-year machine warranty. Optional semi-automatic feeding is listed separately at US$2,500. Final configuration and delivery terms follow the order agreement; these figures do not establish a complete delivered project price.
Can TY-G120F cut every profile within 160 mm?
The stated range covers round and square tubes from 10 to 160 mm. Other profiles are not established by that range. Submit the cross-section and full drawing for review instead of assuming a matching outside size is sufficient.
How much space should I plan for the optional rack?
The listed machine dimensions are 8,004 × 1,212 × 1,916 mm, or 8,004 × 1,747 × 1,916 mm with the semi-automatic rack. Include stock access, operator access and service clearance in the installation review; machine dimensions alone are not the complete working envelope.
Does the listed repeat accuracy guarantee my cut-part dimensions?
The ±0.02 mm figure is repeat positioning accuracy. Finished-part results also depend on the tube condition, material, geometry and cutting process. Provide drawing tolerances and acceptance requirements with the enquiry.
