Economical tube cutting series
TY-S60 / TY-S100 Economical Laser Tube Cutting Machines
TY-S60 / TY-S100 is a manual-loading fiber laser tube-cutting series with pneumatic auto-centering and listed 1.2 or 2 kW options. Review the series-level 10–100 mm round-tube range and 6 m stock length against the specific model, profile and support arrangement being offered.
Whole-machine warranty: 2 years · Final model, price and delivery timing depend on the tube profile, laser power and process package.
Specifications
TY-S60 / TY-S100 technical data
Series and working range
- Models
- TY-S60 / TY-S100
- Listed laser power
- 1,200 / 2,000 W
- Maximum tube length
- 6,000 mm
- Listed round-tube diameter
- 10-100 mm
- Supported profiles
- Round, square, rectangular and selected special-shaped tubes
Motion and accuracy
- Maximum Y-axis speed
- 120 m/min
- Maximum acceleration
- 1.0 G
- Positioning accuracy
- ±0.03 mm
- Repeat positioning accuracy
- ±0.02 mm
Chuck and control
- Chuck
- Pneumatic direct-push auto-centering chuck
- Maximum chuck speed
- 100 rpm
- Listed chuck load
- 100-300 kg
- Listed minimum tail length
- 40-85 mm
- Control system
- Bus-type CNC system
Utilities and warranty
- Laser source options
- Raycus / MAX / IPG
- Cooling
- Water cooling
- Power supply
- 380 V / 50 Hz
- Reference overall dimensions
- 6,908 × 860 × 1,151.25 mm
- Whole-machine warranty
- 2 years

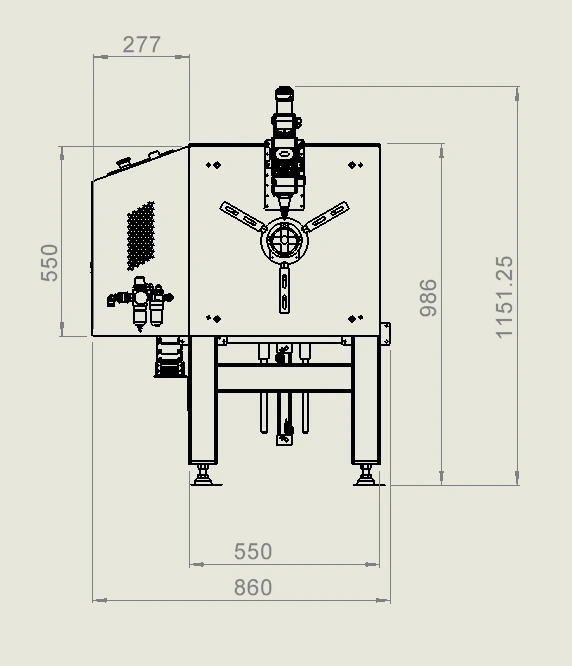

Machine dimensions
Overall size and equipment clearances
Drawing dimensions are shown in millimetres. Confirm the final foundation, service access and material-loading clearances against the selected configuration before installation.
Essential tube-cutting system
A focused configuration for everyday tube production
Pneumatic auto-centering chuck
The direct-push pneumatic chuck centers and clamps the tube for coordinated rotation and cutting motion.
Manual loading layout
A focused material-loading arrangement keeps the machine configuration compact for essential tube-cutting work.
Common profile support
The listed process scope includes round, square and rectangular tube, with special profiles reviewed against the drawing.

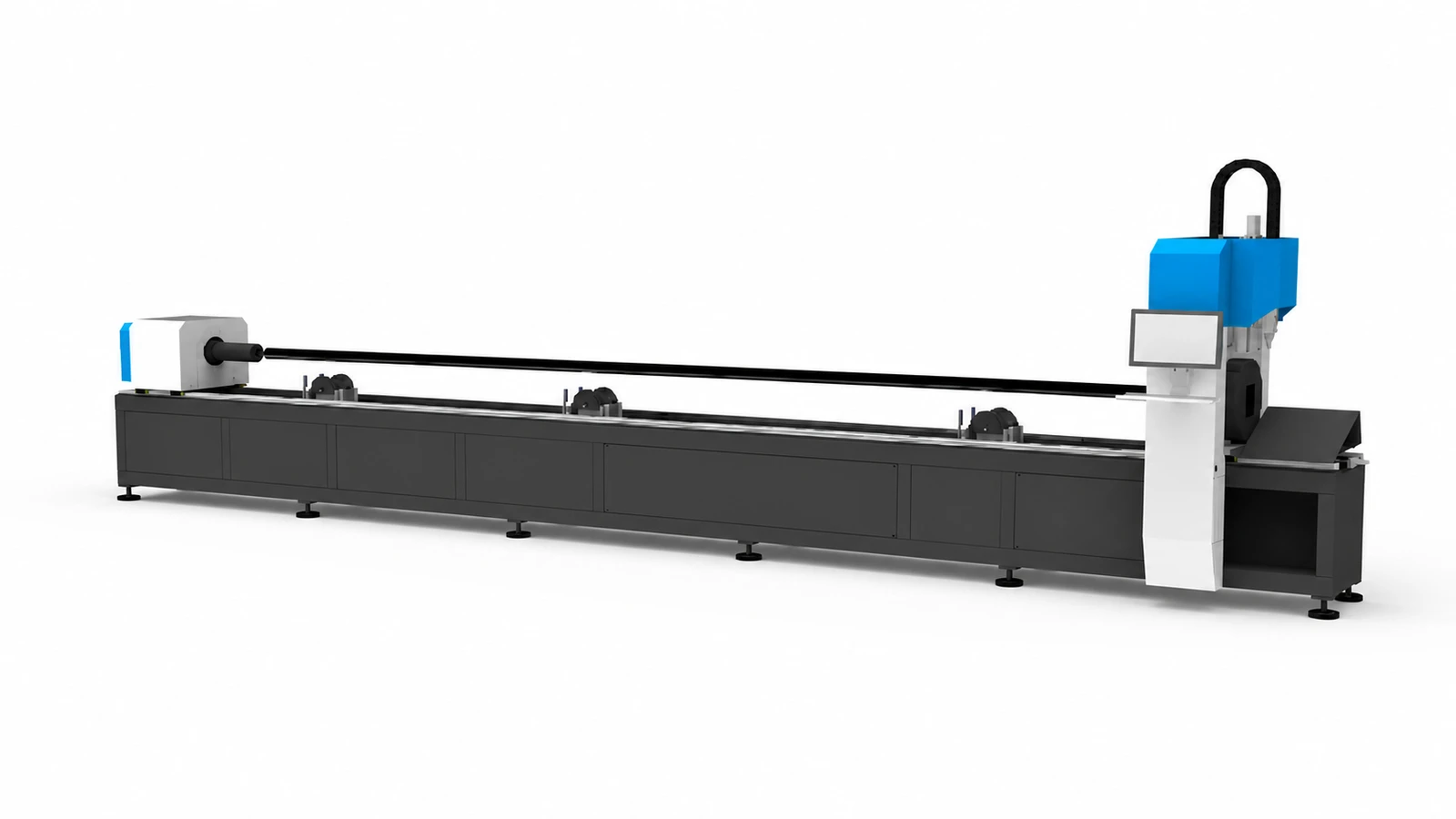

Six-metre tube processing
The listed 6,000 mm tube length supports common long-stock production within the configured support layout.
1.2-2 kW power selection
The laser package is selected against material, wall thickness, assist gas and required edge quality.
Compact production footprint
The series is configured around essential tube-cutting functions for workshops that do not require an automatic bundle-loading line.
Production and inspection
From machine-bed preparation to delivery
- 01
Machine-bed welding
- 02
Beam preparation
- 03
Heat treatment
- 04
Precision machining
- 05
Pre-assembly inspection
- 06
Machine assembly
- 07
Testing, debugging and acceptance
- 08
Delivery
Processing scope
Tube materials and production contexts for the economical series
TY-S60 and TY-S100 are presented as one economical series. The final model, usable profile range and cutting process are confirmed against the tube drawing and sample.
- Carbon steel
- Final capability is confirmed against grade, wall thickness, gas and edge-quality target
- Stainless steel
- Tube grade, wall thickness and surface requirements are reviewed before configuration
- Aluminium and copper
- Alloy grade, reflectivity and process requirements are reviewed before configuration
Related products
Other tube-cutting paths
TY-S120-G automatic tube cutter
Optional bundle loading, unloading and sorting for repeat tube production.
Heavy-duty tube and profile workTY-28025 three-chuck tube cutter
Three-chuck workholding for long, large-diameter tube and listed structural profiles.
All tube-cutting familiesLaser tube cutting machines
Compare semi-automatic, fully automatic, three-chuck and economical tube systems.
Explore industry solutions
Browse our industry solutions and discuss the equipment, fixtures and process requirements for your application.
View all industry solutionsMatch the small-tube configuration to the actual workload
Confirm the selected model within the shared series
TY-S60 and TY-S100 share a series page. The listed range is not a separate capacity table for each model. Use the tube cross-section, wall thickness and drawing to obtain a model-specific specification rather than inferring capacity from the model suffix.
Include manual handling in the production plan
Pneumatic auto-centering clamps the tube; it does not automatically place stock in the machine. Describe loading, support and finished-part collection when comparing the configuration with assisted-loading or automatic-loading alternatives.
Compare the package, not the economical label
The series name does not establish a lowest-price claim or a fixed payback period. Compare the offered model, laser package, support arrangement and installation scope with the same production brief so the quotations describe equivalent work.
Machine selection questions
Are TY-S60 and TY-S100 automatically loaded?
The listed material-loading arrangement is manual. Pneumatic auto-centering describes the chuck action and should not be read as automatic stock loading. Review separate loading requirements when defining the equipment package.
Does each model cover the full 10–100 mm range?
That is the listed series-level round-tube range. The current table does not assign a separate capacity range to each model. Confirm the offered model against the tube dimensions and cross-section before order.
Can this range cut precision microtubes?
This page describes the listed industrial tube-cutting series, not a dedicated microtube machining specification. Any small or thin-wall part must be reviewed against its geometry, material and tolerance requirements; the small-tube description alone does not establish that capability.
Does the 6 m stock length determine the finished-part length?
It describes the listed maximum tube length for the configured support layout. Finished-part length and collection requirements depend on the drawing and cutting sequence. Include both incoming stock and finished pieces in the review.
How do I request a comparable S60 or S100 quotation?
Provide the tube drawing, material, wall thickness, stock length, finished-part requirements and output target. Ask for the selected model, power, chuck and support arrangement to be identified, together with the manual loading workflow and installation scope.
Request a quote
Tell us the part. We will tell you the machine.
Price depends on the selected model, laser power, tube material and profile, wall thickness, support requirements and installation scope.
