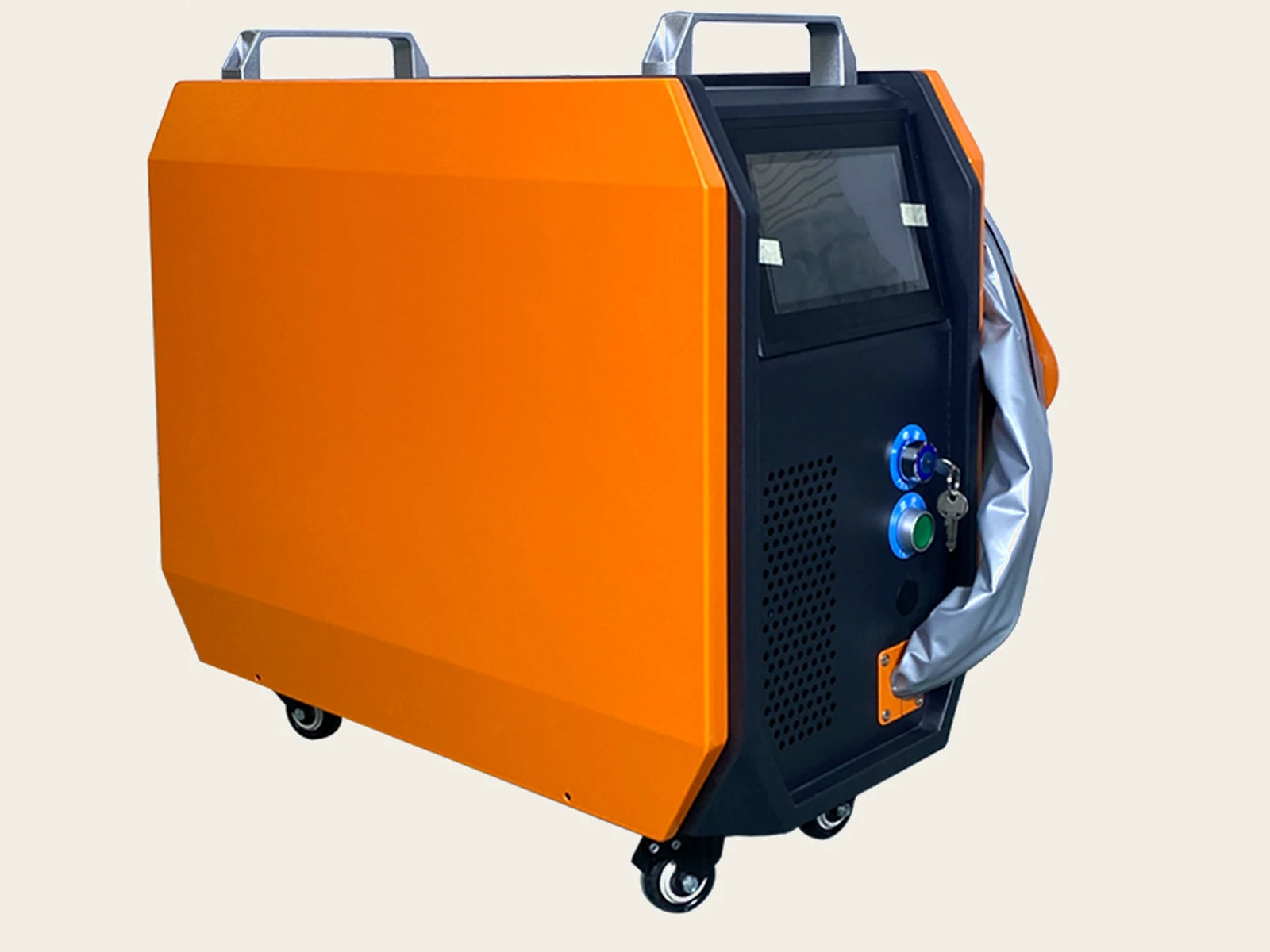

TY-HS1023 orange and black air-cooled continuous laser cleaning machine with touchscreen, top handles, side-mounted cleaning head sleeve and caster wheels — TY-HS1023 · Air-cooled continuous laser cleaning machine

Air-cooled continuous cleaning

TY-HS1023 Air-Cooled Continuous Laser Cleaning Machine

TY-HS1023 combines a continuous fiber laser with air cooling in a wheeled workshop machine. Choose from 800, 1,200, 1,500 or 2,000 W after reviewing the surface layer, substrate and required cleaning result; handheld and automatic operation are listed configurations.

Request a quote ← All cleaning systems

Listed power range0.8-2kW

Power options4levels

Scan width300mm

Whole-machine warranty: 2 years · Final price and delivery timing depend on power, fiber length, operating mode, safety, extraction and integration scope.

Specifications

TY-HS1023 technical data

Machine architecture

Model: TY-HS1023
Laser source: Continuous fiber laser
Cooling method: Air cooling
Operation: Handheld or automatic
Control: Touchscreen
Machine mobility: Caster wheels

Laser and cleaning range

Listed laser power: 800 / 1,200 / 1,500 / 2,000 W
Scan width: 300 mm / 11.8 in

Utilities and handling

Input power: AC 220 V ±10%, 50/60 Hz
Fiber cable length: 10 m / 32.8 ft; extension available by configuration
Cleaning-head weight: 2 kg / 4.4 lb
Listed system weight: Approximately 70 kg / 154.3 lb
Whole-machine warranty: 2 years

TY-HS1023 air-cooled continuous laser cleaning machine specifications
Machine architecture
Model	TY-HS1023
Laser source	Continuous fiber laser
Cooling method	Air cooling
Operation	Handheld or automatic
Control	Touchscreen
Machine mobility	Caster wheels
Laser and cleaning range
Listed laser power	800 / 1,200 / 1,500 / 2,000 W
Scan width	300 mm / 11.8 in
Utilities and handling
Input power	AC 220 V ±10%, 50/60 Hz
Fiber cable length	10 m / 32.8 ft; extension available by configuration
Cleaning-head weight	2 kg / 4.4 lb
Listed system weight	Approximately 70 kg / 154.3 lb
Whole-machine warranty	2 years

Four listed power levels for one air-cooled machine

The appropriate output is confirmed from the substrate, surface layer, cleaning area and duty cycle. Power level alone does not define the complete process result.

800 W

Listed entry power

1,200 W

Listed intermediate power

1,500 W

Listed intermediate power

2,000 W

Listed maximum power

Air-cooled mobility with handheld or automatic operation

Air-cooled machine architecture

The listed configuration uses air cooling, so project planning does not include the separate water-cooling circuit required by water-cooled cleaning systems.

Four listed power levels

Choose 800, 1,200, 1,500 or 2,000 W after reviewing the surface layer, base material, cleaning area and required duty cycle.

Handheld or automatic operation

The source configuration lists both handheld use and automatic operation, allowing the handling approach to be matched to access and production requirements.

300 mm scan width

The listed 300 mm / 11.8 in scan width supports broad passes on metal parts, panels and equipment surfaces.

Mobile workshop handling

A listed system weight of approximately 70 kg, caster wheels and a 10 m fiber cable support movement between workshop stations and local work areas.

Selected from the workpiece first

Power and operating mode are confirmed after reviewing the substrate, contaminant or coating, access, cleaning area and acceptance sample.

From surface review to installation planning

A typical sequence for matching the machine to the substrate, surface layer, access conditions and production duty.

01
Base material and surface-layer review
02
Rust, oxide, paint, oil or scale definition
03
Cleaning area and access check
04
Sample and acceptance-standard planning
05
Power-level selection
06
Handheld or automatic mode planning
07
Fiber length, safety and extraction scope
08
Installation and commissioning plan

01
Base material and surface-layer review
02
Rust, oxide, paint, oil or scale definition
03
Cleaning area and access check
04
Sample and acceptance-standard planning
05
Power-level selection
06
Handheld or automatic mode planning
07
Fiber length, safety and extraction scope
08
Installation and commissioning plan

Compare water-cooled, pulsed and automated paths

Water-cooled continuous cleaning

TY-HS1022

Compare 1.5-2 kW and 3-6 kW water-cooled configurations for larger-area cleaning projects.

Pulsed laser cleaning

TY-QX1019

Compare eight pulsed configurations for mobile, workshop and production cleaning tasks.

Integrated processing cells

Robot automation systems

Explore robot and handling systems for application-specific automated processing projects.

Browse our industry solutions and discuss the equipment, fixtures and process requirements for your application.

View all industry solutions

Plan an air-cooled continuous cleaning setup

Separate cooling method from laser emission

Air cooling describes machine cooling; this model uses continuous-wave emission. If your application is being compared with a pulsed cleaner, evaluate the actual surface result on representative parts rather than choosing on the air-cooled label alone.

Check movement and working reach

The approximately 70 kg system moves on caster wheels, while the cleaning head is listed at 2 kg. Review floor access, machine position and cable routing around the workpiece using the standard 10 m fiber length; confirm any requested extension in the configuration.

Define how the cleaning head will be operated

For handheld work, specify access directions and the area to be covered. For automatic operation, identify the handling equipment, fixture, motion sequence and controls interface required. The automatic-operation listing does not establish that a robot or complete production cell is included.

Machine selection questions

Is an air-cooled laser cleaner always pulsed?

No. TY-HS1023 is an air-cooled continuous fiber laser cleaner. Cooling architecture and emission mode are separate choices; the TY-QX1019 range provides the pulsed alternatives.

Which laser powers are available for this model?

The current configuration lists 800, 1,200, 1,500 and 2,000 W. Select one of these options around the surface-cleaning task and confirm the complete machine configuration in the quotation.

Does automatic operation include a robot?

A robot is not established as standard equipment by the automatic-operation listing. Motion equipment, fixtures, control interfaces and integration responsibilities must be defined for the proposed automatic setup.

What utilities and access should be checked?

The listed input is AC 220 V, 50/60 Hz. Confirm the selected machine’s electrical requirements, available floor access and cable route, together with the extraction and safeguarding arrangement for the cleaning task.

How should I compare this with water-cooled or pulsed cleaning?

Use the same substrate, surface layer, accessible area and accepted surface finish for the comparison. Review the trial result and required operating duty alongside cooling, head handling and installation needs; power or scan width alone does not establish cleaning output.
