Cabinet · multi-mode pulsed cleaning

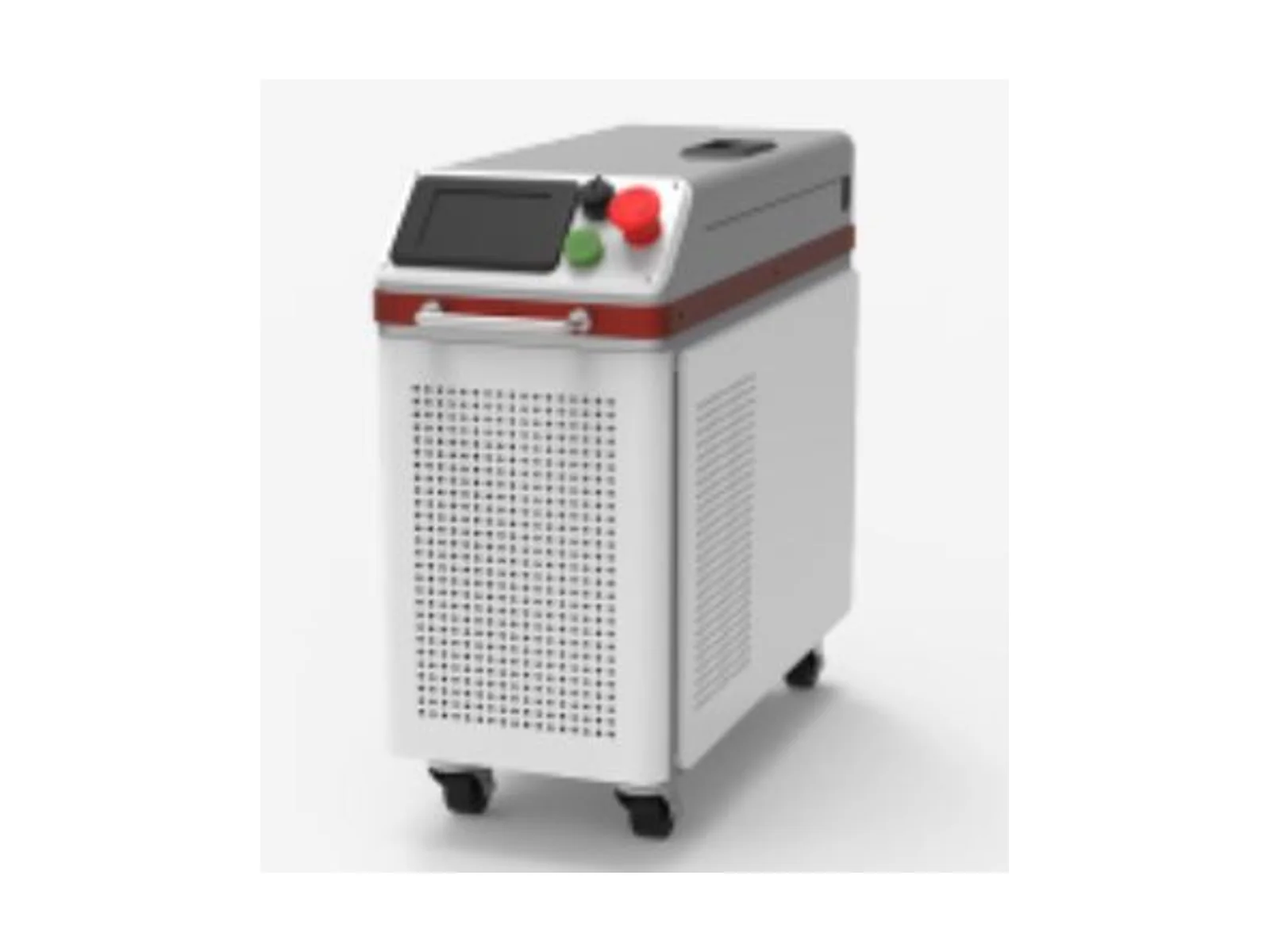

Air-Cooled Cabinet Multi-Mode Pulsed Laser Cleaning Machine
The TY-QX1019 air-cooled multi-mode cabinet lists 200, 300 and 500 W pulsed cleaning options. Compare the documented pulse-energy pairings and power-specific cable lengths against the workpiece; the 500 W pulse-energy pairing needs confirmation before specification.
Whole-machine warranty: 2 years · Final price and delivery timing depend on laser power, pulse-energy option, cleaning requirement, safety, extraction and delivery scope.
Specifications
TY-QX1019 air-cooled cabinet multi-mode configuration data
Machine architecture
- Model
- TY-QX1019
- Configuration
- Air-cooled cabinet · multi-mode
- Laser source
- JPT pulsed fiber laser
- Laser wavelength
- 1,064 nm
- Cooling / operation
- Air cooling / handheld
- Enclosure
- Wheeled cabinet
Laser and cleaning range
- Listed laser power
- 200 / 300 / 500 W
- Confirmed pulse-energy mapping
- 5 mJ at 200 W; 5 / 15 mJ at 300 W; 500 W mapping pending confirmation
- Maximum scan speed
- 30,000 mm/s / 98.4 ft/s
- Cleaning width
- 10-140 mm / 0.39-5.51 in
- Fiber cable length
- 5 m / 16.4 ft at 200 / 300 W; 10 m / 32.8 ft at 500 W
Utilities and handling
- Input power
- AC 220 V ±10%, 50/60 Hz
- Cleaning-head weight
- 0.9 kg / 2.0 lb at 200 W; 1.25 kg / 2.8 lb at 300 W; 1.5 kg / 3.3 lb at 500 W
- Machine weight
- 54 kg / 119.0 lb
- Machine size
- 766.5 × 371 × 786.4 mm / 30.2 × 14.6 × 31.0 in
- Warranty
- 2 years for the whole machine
Match pulse modes to changing cleaning tasks
Power-specific pulse-energy options
The listed pairing is 5 mJ at 200 W and 5 or 15 mJ at 300 W. Confirm the 500 W pulse-energy pairing before comparing the selected package with another configuration.
Three listed power options
The cabinet is listed with 200, 300 and 500 W choices. The final power and pulse-energy option are selected from the submitted material, surface layer and target result.
Integrated air cooling
The cabinet uses air cooling and does not require an external water-cooling circuit, simplifying supporting utility requirements around the workstation.
Adjustable cleaning coverage
The listed 10-140 mm cleaning width and maximum 30,000 mm/s scan speed provide a documented range for process trials on submitted parts.
Power-specific working reach
The current sheet lists a 5 m fiber cable at 200 / 300 W and a 10 m cable at 500 W for work around larger components and structures.
Power-specific head weight
The listed cleaning-head weight increases from 0.9 kg at 200 W to 1.5 kg at 500 W, allowing operator handling requirements to be reviewed before configuration.
From surface review to cleaning acceptance
The final power and settings are selected from the material, surface layer, access conditions, target finish and acceptance criteria.
- 01
Base material and surface layer reviewed
- 02
Rust, paint, carbon or oxide defined
- 03
Cleaning area and access checked
- 04
Target finish and acceptance standard agreed
- 05
200, 300 or 500 W power selected
- 06
Pulse-energy option, scan speed and width confirmed
- 07
Head weight and cable reach reviewed
- 08
Safety, extraction and delivery scope confirmed
Compare other laser cleaning configurations
TY-QX1019
Compare all eight backpack, suitcase and cabinet configurations in the TY-QX1019 series.
Cabinet single-mode configurationTY-QX1019
Compare the 200-500 W single-mode cabinet and its listed 30 kg machine weight.
Water-cooled cabinet single-modeTY-QX1019
Compare the higher-power 500-2,000 W cabinet with integrated water cooling and up to 250 mm cleaning width.
Explore industry solutions
Browse our industry solutions and discuss the equipment, fixtures and process requirements for your application.
View all industry solutionsConfirm the source pairing and working reach
Keep the confirmed pulse-energy pairings explicit
The current table lists 5 mJ at 200 W and 5 or 15 mJ at 300 W. The 500 W pulse-energy mapping is not yet confirmed. Ask for the selected power and pulse energy together rather than treating a series-wide maximum as a verified pairing.
Review reach and head handling by power
The 200 and 300 W options list five-metre fiber, while the 500 W option lists ten metres. Head weights are 0.9, 1.25 and 1.5 kg respectively. Check the full cable route and surface approach for the chosen configuration.
Compare beam modes on an agreed surface task
Multi-mode identifies the laser beam mode, not multiple machine functions. Compare this 54 kg air-cooled cabinet with the single-mode or water-cooled alternatives using the same substrate, layer and accepted finish, then assess the relevant utilities and handling requirements.
Machine selection questions
Which power options are listed?
The cabinet lists 200, 300 and 500 W. Confirm power, pulse energy, head and cable as one selected configuration in the proposal.
Does every version include a ten-metre cable?
No. Five metres is listed at 200 and 300 W; ten metres is listed at 500 W. Review the power-specific cable length against the actual route to the workpiece.
Does multi-mode mean several cleaning presets?
The term identifies the laser beam mode. It does not establish a number of presets, extra welding or cutting functions, or universally better cleaning than a single-mode source.
Is the 500 W pulse energy confirmed?
No. The current configuration record leaves that pairing pending confirmation. Do not assume the 200 or 300 W pulse energies or a series-wide value apply to the 500 W option.
When should I compare the water-cooled cabinet?
Compare it when reviewing the listed higher-power pulsed options and the installation needed for them. Use the same cleaning acceptance criteria, then compare electrical supply, cooling, system weight and access rather than power alone.
