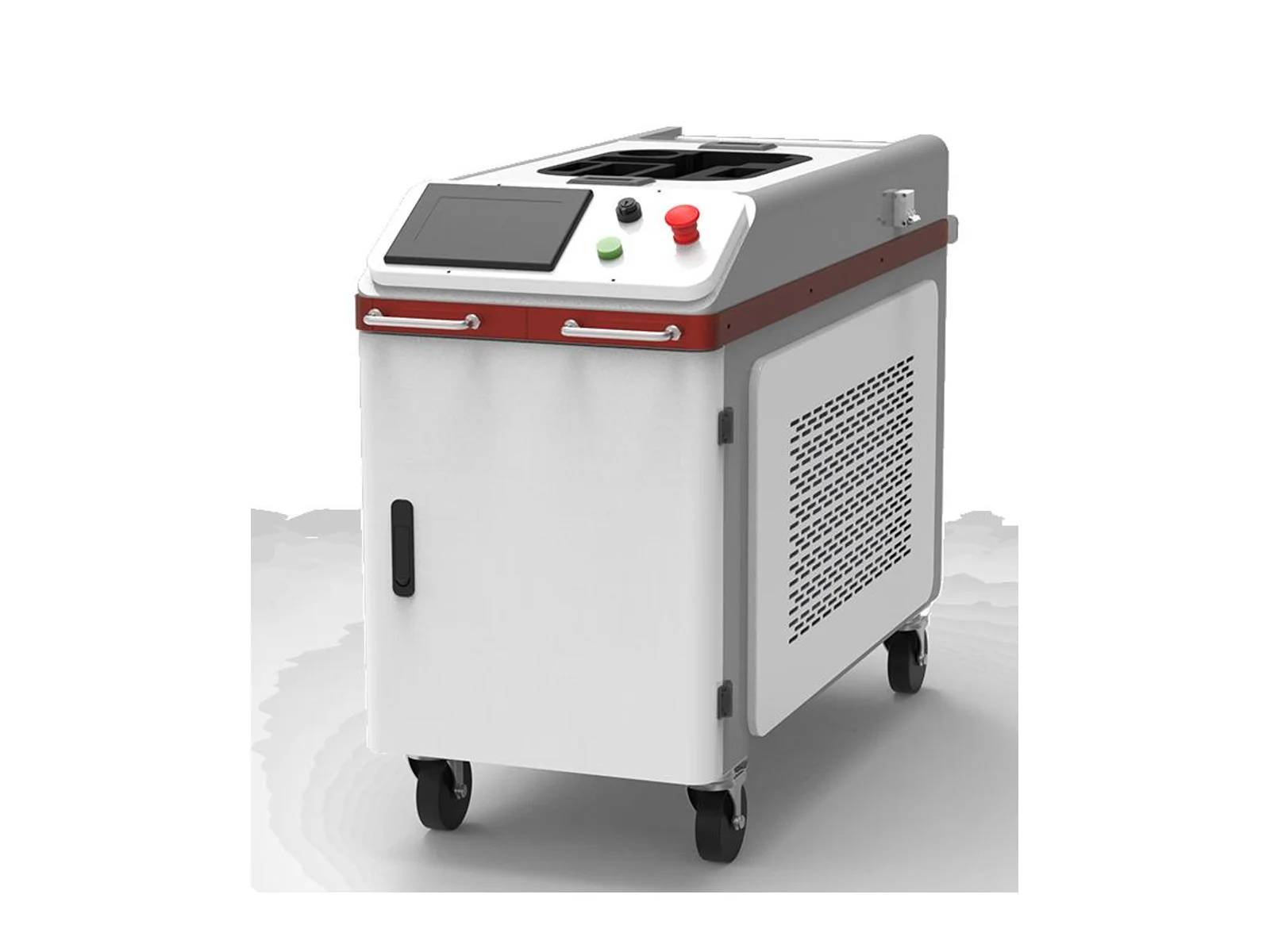

Water-Cooled Cabinet Single-Mode Pulsed Laser Cleaning Machine
The TY-QX1019 water-cooled single-mode cabinet offers 500, 1,000, 1,500 or 2,000 W pulsed cleaning with ten-metre fiber. Select the power together with its electrical supply and cleaning-width range, and confirm the pulse-energy pairing for the proposed package.
Whole-machine warranty: 2 years · Final price and delivery timing depend on laser power, pulse-energy mode, cleaning requirement, safety, extraction and delivery scope.
Specifications
TY-QX1019 water-cooled cabinet single-mode configuration data
Machine architecture
- Model
- TY-QX1019
- Configuration
- Water-cooled cabinet · single-mode
- Laser source
- JPT pulsed fiber laser
- Laser type
- Pulsed fiber laser
- Cooling / operation
- Water cooling / handheld
- Enclosure
- Wheeled cabinet
Laser and cleaning range
- Listed laser power
- 500 / 1,000 / 1,500 / 2,000 W
- Listed pulse-energy modes
- 15 / 50 / 100 mJ; power mapping to be confirmed
- Cleaning width at 500 W
- 10-140 mm / 0.39-5.51 in
- Cleaning width at 1,000-2,000 W
- 10-250 mm / 0.39-9.84 in
- Fiber cable length
- 10 m / 32.8 ft
Utilities and handling
- Input power at 500 / 1,000 W
- AC 220 V ±10%, 50/60 Hz
- Input power at 1,500 / 2,000 W
- AC 380 V ±10%, 50/60 Hz
- Cleaning-head weight
- 1.5 kg / 3.3 lb
- Machine weight
- Approximately 135 kg / 297.6 lb
- Machine size
- 1,075 × 458 × 796 mm / 42.3 × 18.0 × 31.3 in
- Warranty
- 2 years for the whole machine
Higher-power pulsed cleaning with integrated water cooling
Four higher-power options
The current configuration sheet lists 500, 1,000, 1,500 and 2,000 W choices for matching the processing rate, surface layer and required cleaning coverage.
Integrated water cooling
The cabinet incorporates a water-cooling circuit to support higher-power pulsed operation and extended industrial cleaning schedules.
Power-specific electrical supply
The sheet assigns AC 220 V input to the 500 / 1,000 W versions and AC 380 V input to the 1,500 / 2,000 W versions, keeping utility planning visible during configuration review.
Cleaning width up to 250 mm
The listed width is 10-140 mm at 500 W and 10-250 mm at 1,000 to 2,000 W, allowing the required coverage to be reviewed against the submitted workpiece.
Ten-metre working reach
A listed 10 m fiber cable separates the cabinet from the handheld cleaning point for work around large components and structures.
1.5 kg handheld cleaning head
The listed cleaning-head weight is 1.5 kg across the configuration range, providing a clear input for access and operator-handling review.
From surface review to cleaning acceptance
The final power and settings are selected from the material, surface layer, access conditions, target finish and acceptance criteria.
- 01
Base material and surface layer reviewed
- 02
Rust, paint, carbon or oxide defined
- 03
Cleaning area and access checked
- 04
Target finish and acceptance standard agreed
- 05
500, 1,000, 1,500 or 2,000 W selected
- 06
Pulse-energy mode and cleaning width confirmed
- 07
Electrical supply, cooling and cable reach reviewed
- 08
Safety, extraction and delivery scope confirmed
Compare other laser cleaning configurations
TY-QX1019
Compare all eight backpack, suitcase and cabinet configurations in the TY-QX1019 series.
Air-cooled cabinet single-modeTY-QX1019
Compare the lighter 200-500 W air-cooled cabinet and its listed 30 kg machine weight.
Air-cooled cabinet multi-modeTY-QX1019
Compare the 200-500 W air-cooled cabinet with selectable pulse-energy modes and a 54 kg listed machine weight.
Explore industry solutions
Browse our industry solutions and discuss the equipment, fixtures and process requirements for your application.
View all industry solutionsPlan the pulsed source and site utilities together
Check voltage before choosing a power package
The 500 and 1,000 W options list AC 220 V input; the 1,500 and 2,000 W options list AC 380 V. Review the selected electrical and water-cooling installation with the available site utilities before fixing the machine configuration.
Use the width for the selected power
Cleaning width is listed as 10–140 mm at 500 W and 10–250 mm at 1,000, 1,500 or 2,000 W. The widest figure is not shared by every option and does not establish area cleaned per hour without an accepted process result.
Confirm pulse energy and operating requirements
The record lists 15, 50 and 100 mJ with power mapping still to be confirmed. Agree the selected pairing, sample result and intended operating schedule. Water cooling alone is not a guarantee of a particular continuous duty or production output.
Machine selection questions
Is this the same as a water-cooled continuous cleaner?
No. This TY-QX1019 cabinet uses a pulsed source. The TY-HS1022 series uses a continuous fiber laser; compare them against the surface task and required result.
Which versions require 380 V?
The listed 1,500 and 2,000 W versions use AC 380 V. The 500 and 1,000 W versions list AC 220 V; confirm the full electrical requirements for the chosen package.
Does every option provide 250 mm cleaning width?
No. The 500 W option lists 10–140 mm, while 1,000, 1,500 and 2,000 W list 10–250 mm. Use the selected option’s range during the process review.
Can I choose any pulse energy at any power?
That is not established. The listed pulse energies are 15, 50 and 100 mJ, but their power mapping requires confirmation before the pairing can be specified.
What should be reviewed for repeated production cleaning?
Provide the substrate, layer condition, part geometry, accepted finish and intended operating schedule. Confirm sample results, passes, head access, cooling requirements and the working time needed for the selected configuration.
