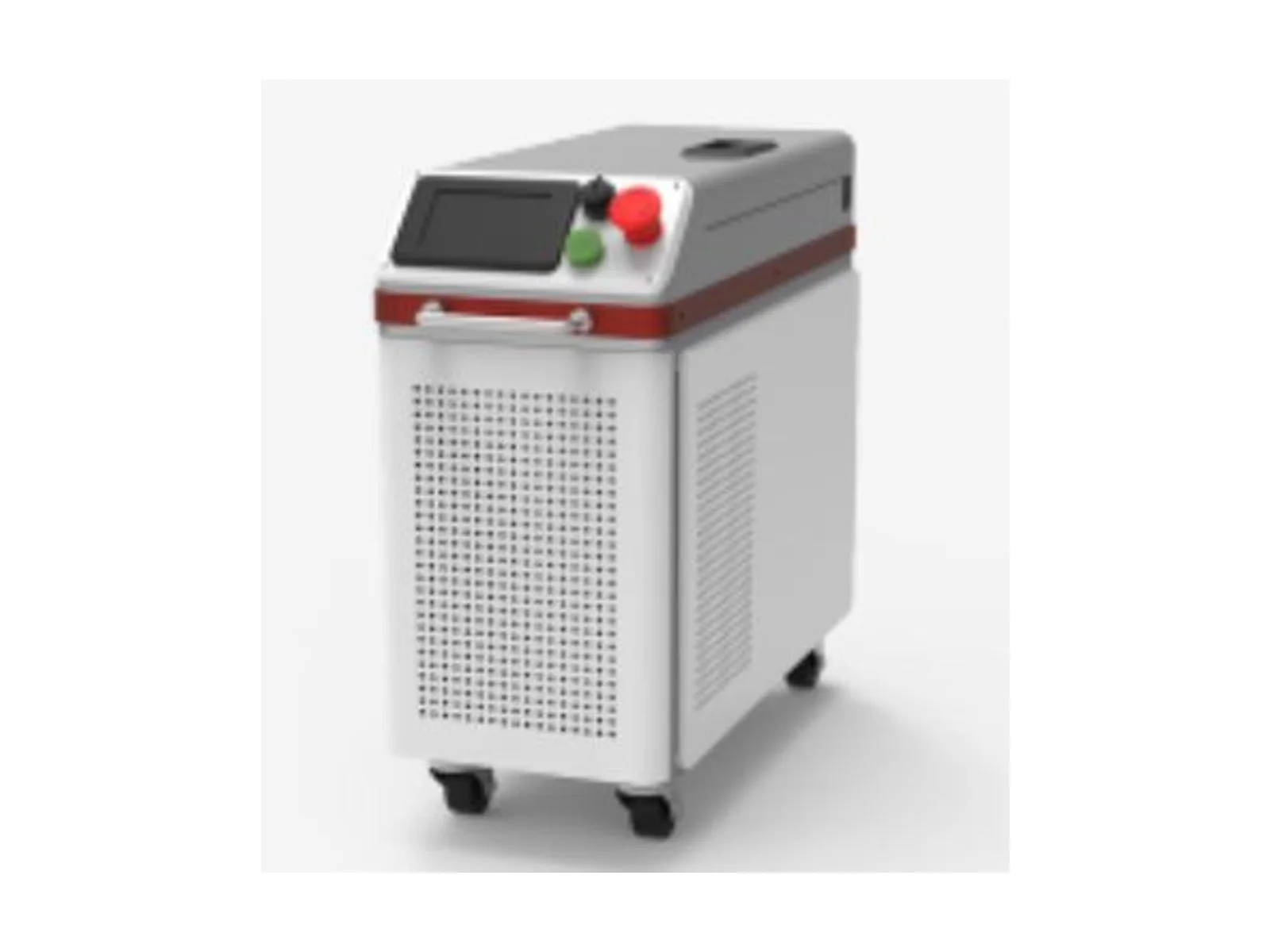

Air-Cooled Cabinet Single-Mode Pulsed Laser Cleaning Machine
The TY-QX1019 air-cooled single-mode cabinet offers 200, 300 or 500 W pulsed cleaning in a 30 kg wheeled unit. Review the power-specific pulse energy and head weight alongside five-metre fiber access to select a workshop cleaning configuration.
Whole-machine warranty: 2 years · Final price and delivery timing depend on laser power, cleaning requirement, safety, extraction and delivery scope.
Specifications
TY-QX1019 air-cooled cabinet single-mode configuration data
Machine architecture
- Model
- TY-QX1019
- Configuration
- Air-cooled cabinet · single-mode
- Laser source
- JPT pulsed fiber laser
- Laser type
- Pulsed fiber laser
- Cooling / operation
- Air cooling / handheld
- Enclosure
- Wheeled cabinet
Laser and cleaning range
- Listed laser power
- 200 / 300 / 500 W
- Maximum single-pulse energy
- 1.5 mJ at 200 / 300 W; 2 mJ at 500 W
- Maximum scan speed
- 30,000 mm/s / 98.4 ft/s
- Cleaning width
- 10-140 mm / 0.39-5.51 in
- Fiber cable length
- 5 m / 16.4 ft
Utilities and handling
- Input power
- AC 220 V ±10%, 50/60 Hz
- Cleaning-head weight
- 0.9 kg / 2.0 lb at 200 W; 1.25 kg / 2.8 lb at 300 W; 1.5 kg / 3.3 lb at 500 W
- Machine weight
- 30 kg / 66.1 lb
- Machine size
- 662.5 × 341 × 737.5 mm / 26.1 × 13.4 × 29.0 in
- Warranty
- 2 years for the whole machine
Move pulsed cleaning between workshop tasks
Three listed power options
The current configuration sheet lists 200, 300 and 500 W options for matching the cleaning requirement and required processing rate.
Power-specific pulse energy
The listed maximum single-pulse energy is 1.5 mJ at 200 / 300 W and 2 mJ at 500 W, keeping the power-to-process choice visible during configuration review.
Integrated air cooling
The cabinet uses air cooling and does not require an external water-cooling circuit, simplifying supporting utility requirements around the workstation.
Adjustable cleaning coverage
The listed 10-140 mm cleaning width and maximum 30,000 mm/s scan speed provide a documented range for process trials on submitted parts.
Five-metre working reach
The listed 5 m fiber cable separates the wheeled cabinet from the handheld cleaning point for work around larger components and structures.
Power-specific head weight
The listed cleaning-head weight increases from 0.9 kg at 200 W to 1.5 kg at 500 W, allowing handling requirements to be considered before configuration.
From surface review to cleaning acceptance
The final power and settings are selected from the material, surface layer, access conditions, target finish and acceptance criteria.
- 01
Base material and surface layer reviewed
- 02
Rust, paint, carbon or oxide defined
- 03
Cleaning area and access checked
- 04
Target finish and acceptance standard agreed
- 05
200, 300 or 500 W power selected
- 06
Pulse, scan speed and width confirmed
- 07
Head weight and cable reach reviewed
- 08
Safety, extraction and delivery scope confirmed
Compare other laser cleaning configurations
TY-QX1019
Compare all eight backpack, suitcase and cabinet configurations in the TY-QX1019 series.
MINI cabinet single-mode configurationTY-QX1019
Compare the compact 100-300 W cabinet format and its listed 38 kg machine weight.
Cabinet multi-mode configurationTY-QX1019
Compare the 200-500 W multi-mode cabinet with selectable pulse-energy modes and a 54 kg listed machine weight.
Explore industry solutions
Browse our industry solutions and discuss the equipment, fixtures and process requirements for your application.
View all industry solutionsCompare the cabinet and handheld process together
Keep the cooling choice separate from the cleaning result
This cabinet uses air cooling and a pulsed fiber laser. Compare cooling and installation needs with the water-cooled cabinet, then evaluate the actual substrate and surface layer; cooling method alone does not determine which process achieves the required finish.
Review the head weight at the selected power
The listed head weighs 0.9 kg at 200 W, 1.25 kg at 300 W and 1.5 kg at 500 W. Include the working direction, access and cable handling in the selection, rather than choosing power without considering how the head reaches the surface.
Establish removal output with an acceptance sample
The listed 30,000 mm/s maximum scan speed and 10–140 mm cleaning width describe process settings. Agree the layer removal and underlying-surface requirements, then assess passes and working time on a representative part before setting an output target.
Machine selection questions
Does air cooling make this a continuous-wave cleaner?
No. This is a pulsed fiber laser cleaner with air cooling. The TY-HS1023 is a separate air-cooled continuous configuration; compare emission mode and cooling as distinct specifications.
Is the cabinet an enclosed laser workcell?
The cabinet houses the machine. It is not described as an enclosed processing cell around the workpiece; the handheld task still requires a defined project safeguarding and extraction arrangement.
Is head weight the same for all three powers?
No. The listed values are 0.9 kg at 200 W, 1.25 kg at 300 W and 1.5 kg at 500 W. Confirm the head supplied with the selected configuration.
Can scan speed be converted directly to cleaning output?
No. Scan speed is not cleaned area per hour. Surface condition, settings, overlap, passes and access must be evaluated against the agreed cleaning result.
What should be confirmed before ordering?
Confirm the selected power, pulse energy, head, cable reach and complete supply scope. Request the final configuration image and layout as part of that review; the gallery image is not confirmation of every supplied detail.
